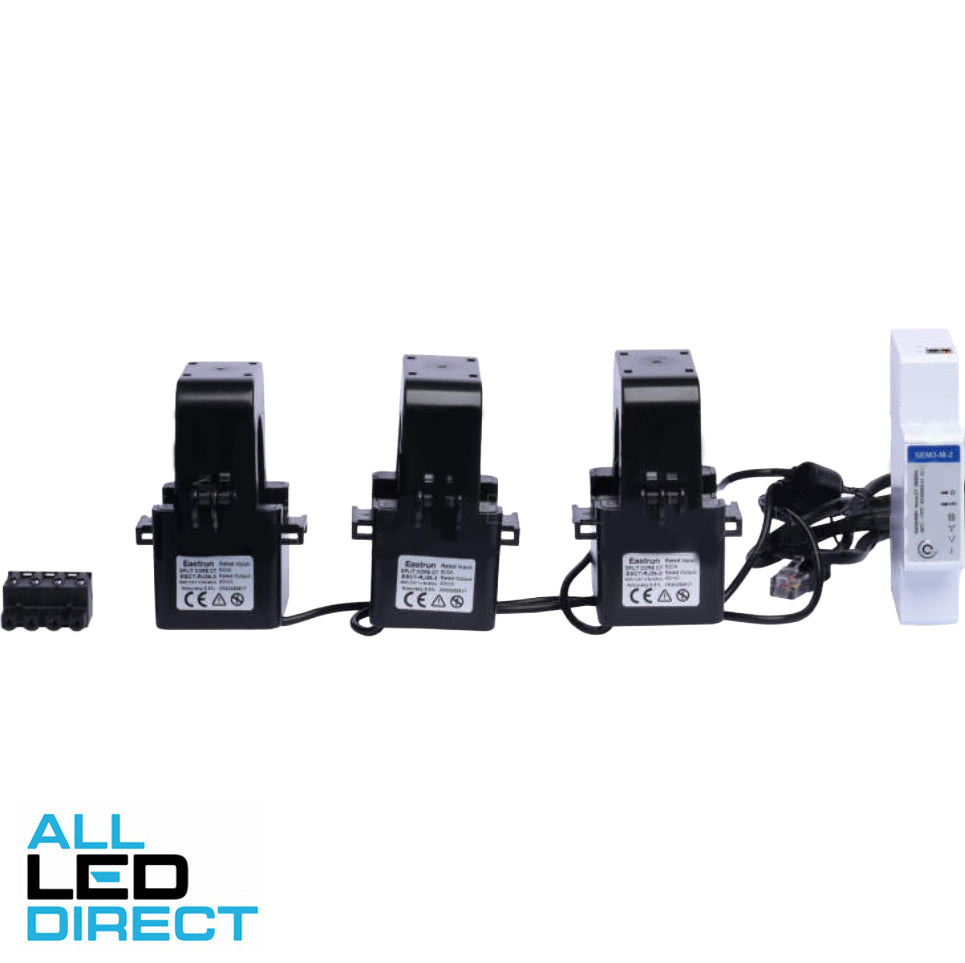

Sigenergy 600 Amp Sigen Power Sensor 3 Phase External CT DH - NEW and IMPROVED

Tech Data Sheets
Installation Guide
Product Details
New and Improved Sigen Power Sensor:
New sensors are lighter and smaller than the previous ones
Faster power refresh rate: Data refresh rate is upgraded to 50ms, which enhances the anti-reverse flow speed andimproves the speed of wiring detection
The new power sensor also have the feature of self-adaptive phase sequence. If the voltage sampling cable and the corresponding CT are connected to the wrong phase, the software will automatically adjust the phase sequence and the devices will still operate normally.
The new power sensor does not come with a voltage sampling wire. It adopts a snap-on mechanism for voltage sampling wiring, and terminals that support blind plugging after the wiring is completed.
Warranty Information
Warranty Method
Contact Sigenergy Support service.au@sigenergy.com - Please note: ALL LED DIRECT is under strict requirements from the manufacture to not accept any returns for this product unless we have prior written approval
Commercial Use
2 Years
Domestic Use
2 Years
Warranty Period
2 Years
Attributes
Brand
Sigenergy
Part Number
14370008
Also Known As
Sigen Sensor TP-CT600-DH
Amperage Range
600 Amps
Aperture Size
Chassis Or Din
Din
Single Phase or 3 Phase
3 Phase
Sub Category
Sensors
Weight (kg)
0.0000
Length (mm)
72
Height (mm)
95
Width (mm)
65
Length Packaging (mm)
72
H

Attributes:

Brand: Sigenergy
Part Number: 14370008
Also Known As: Sigen Sensor TP-CT600-DH
Amperage Range: 600 Amps
Chassis Or Din: Din
Single Phase or 3 Phase: 3 Phase
Sub Category: Sensors
Freight Levy: Freight Free on ALL LED DIRECT Couriers for orders over $500
Weight (kg): 0.0000
Length (mm): 72
Height (mm): 95
Width (mm): 65
Length Packaging (mm): 72
Height Packaging (mm): 95
Width Packaging (mm): 65
Barcode: 2000101099550
Barcode (Secondary): 6978755780031

Warranty Information:

Warranty Method
Commercial Use
2 Years
Domestic Use
2 Years
Warranty Period
2 Years

Shipping Information:

Freight Levy: Freight Free on ALL LED DIRECT Couriers for orders over $500
