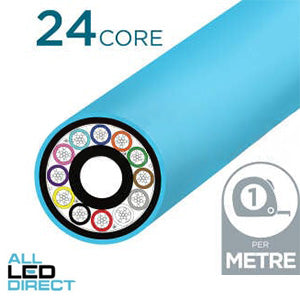

Molex 24 Core OS1/2 Mini Loose Outdoor Optical Fibre Cable Per Meter

The Molex 24 Core OS1/2 Mini Loose Outdoor Optical Fibre Cable Per Meter by Molex is specifically designed for efficient data transmission in outdoor environments, particularly for external underground installations. The Molex AFOMS024OS2 features a robust loose tube construction optimized for installation in micro ducts with a 10mm diameter. It incorporates polyamide for anti-termite protection and is equipped with a low viscosity, thixotropic gel that ensures moisture resistance. The cable's durable design includes a UV stabilized outer sheath, making it ideal for various installation techniques such as pulling, blowing, or floating. The Molex AFOMS024OS2 has a nominal diameter of 6.3 mm and a nominal weight of 33 kg/km.
Key Features
Fiber Count: 24 cores, SM OS1/2
Cable Type: Loose tube, designed for outdoor applications
Construction: design with thermoplastic material
Moisture Protection: Gel-filled for enhanced water resistance
Jacket Material: UV stabilized polyethylene, compliant with AS 1049
Hard Jacket: UV stabilized polyamide (Nylon) for mechanical protection
Installation Techniques: Suitable for blowing in mini ducts
Compliance Standards: Meets IEC 60794-5, AS/CA S008, AS/NZS 2857, and ITU-T Recommendation G.652.D
Main Benefits
Efficient Data Transmission: The Molex AFOMS024OS2 enables efficient data transmission in outdoor environments
Durable Design: The cable's durable design includes a UV stabilized outer sheath, making it ideal for various installation techniques
Moisture Resistance: The low viscosity, thixotropic gel ensures moisture resistance, making it suitable for outdoor installations
Compliance with Australian Standards: The Molex AFOMS024OS2 meets AS/CA S008 and AS/NZS 2857, ensuring compliance with Australian standards
Easy Installation: The cable is suitable for blowing in mini ducts, making installation easier and faster
Upgrade your outdoor data transmission with the Molex 24 Core OS1/2 Mini Loose Outdoor O

Attributes:

Brand: Molex
Part Number: AFOMS024OS2
Also Known As: 24 core singlemode mini loosetube cable Molex
Fibre Cable: Yes
Cable Sheath Colour: Blue
Data Cable Type: Gel Filled
Number of Cores: 24
Optical Mode: OS2
Weight (kg): 1.0000
Length Packaging (mm): 600
Height Packaging (mm): 5
Width Packaging (mm): 600
Barcode: 2000100973356
