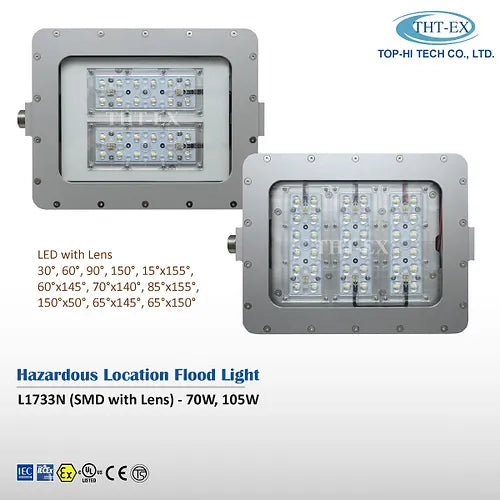

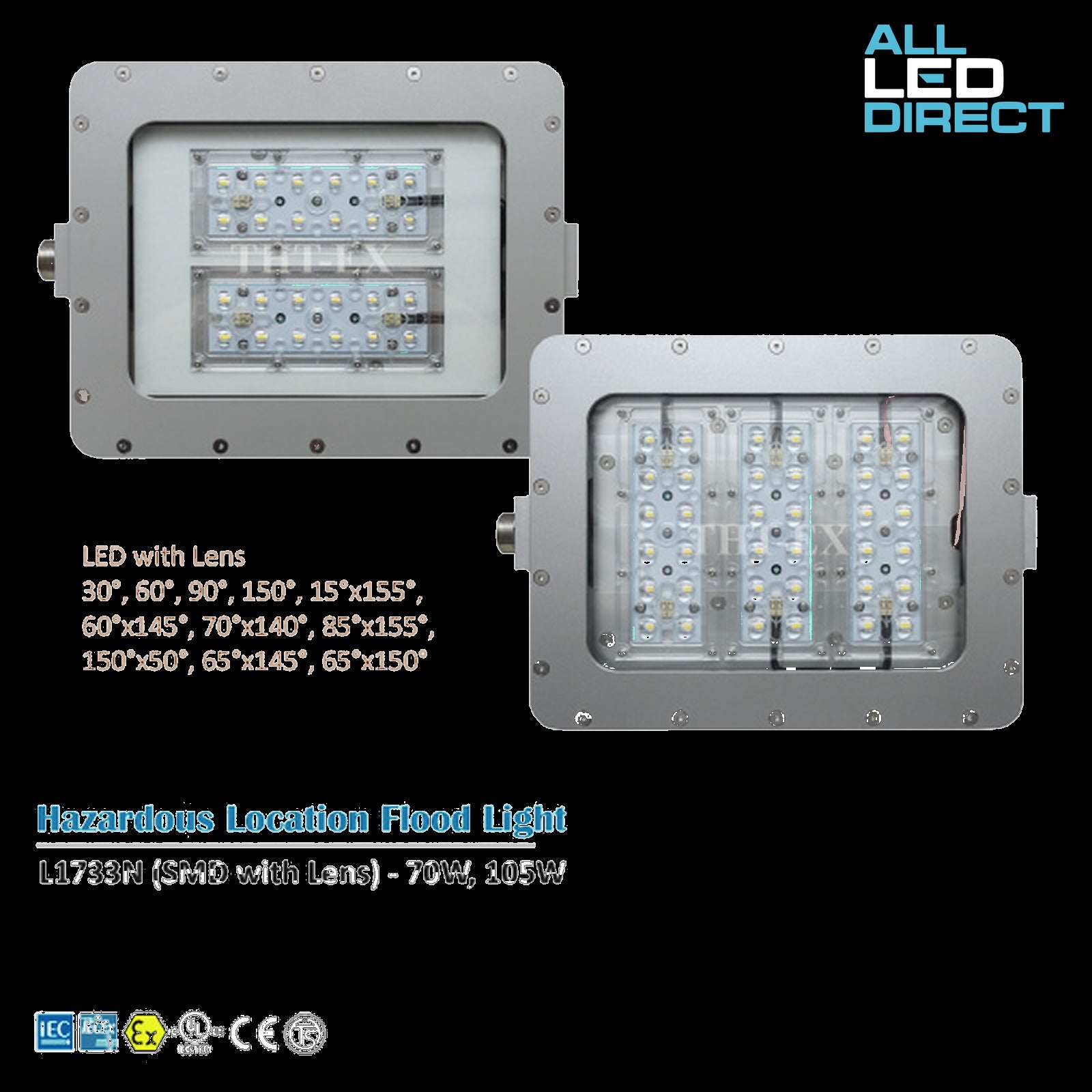

Hazardous Location Flood Light L1733N Lens with NEMA Beam Angle

Light Features

• LED lens with different?NEMA Beam Angle?is available upon?request
• AC-In LED (Driver-less) technology increases efficiency, reduces maintenance costs & environmentally friendly
• Compact size & lightweight
• Provide safe illumination in?hazardous and wet locations

Applicable Location

• Zone 2
• Zone 21 & Zone 22
• Class I, Division 2 (Groups A, B, C and D)
• Class II, Division 2 (Group F and?G)
• Class III

Protection

Degree of Protection - IP67 / NEMA 6

IECEx Certification

• Ex nR IIC T4...T5...T6 Gc
• Ex tb IIIC T110?C...T100?C...T85?C Db

ATEX Certification

• II 3 G Ex nR IIC T4...T5...T6 Gc
• II 2 D Ex tb IIIC T110?C...T100?C...T85?C Db

UL Certification

• UL844 - Class I, Division 2 (Groups A, B, C and D) / Class II, Division 2 (Group F and?G) / Class III
• UL1598

TS Certification

• Ex nR IIC T4...T5...T6 Gc
• Ex tb IIIC T110?C...T100?C...T85?C Db

Specification

• Volt.: 100V~277V / 200V~480V?AC (Full Voltage)
• Watt.: 70W / 105W
• Amps: 100V~277V: 0.25A~1.05A / 200V~480V: 0.15A~0.53A

• Frequency: 50Hz / 60Hz
• Power Factor: cos?0.9, cos?0.87(480V)

Ambient Temperature

• CID2: -20?C ~ +40?C, T3A/CIID2: +40?C, T5?(UL Certification)
• -20?C ~ +40?C, T6 (IECEx&ATEX&TS?Certification)

Optical Information

• CCT : 3000K (Warm White) / 5000K (Cool White)
• CRI : Warm White?80?/ Cool White?70
• Lum/Watt. : ? 90 (Warm White) / ? 100 (Cool White)
