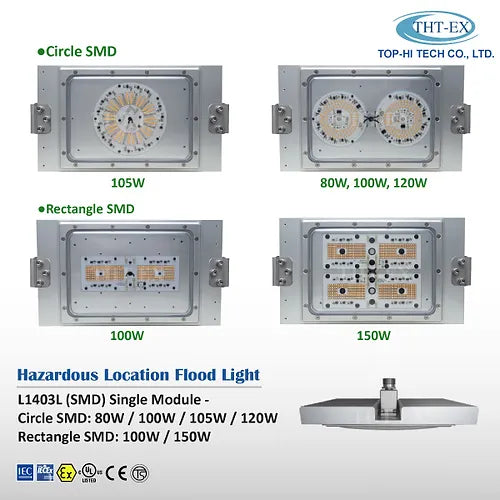

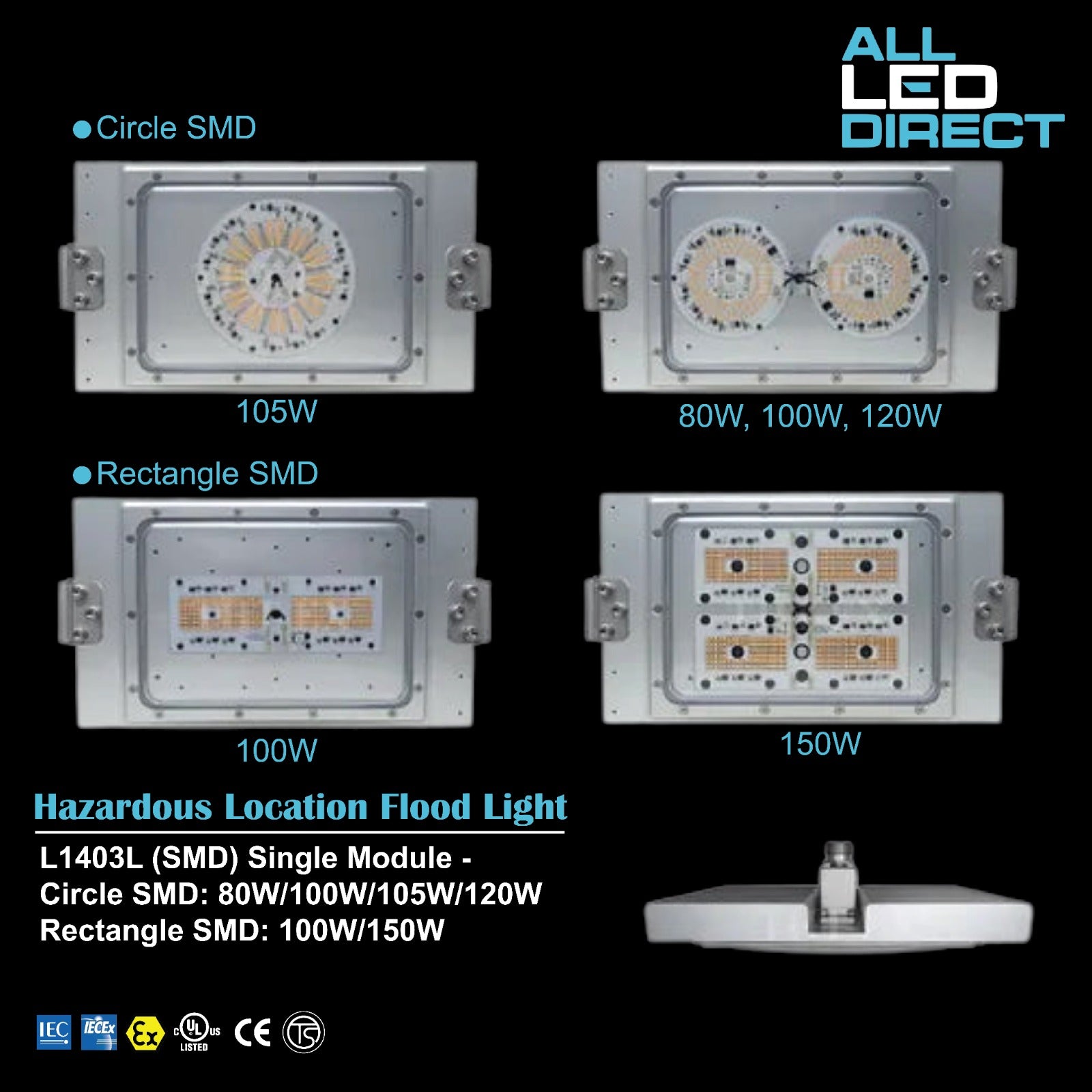

Hazardous Location Flood Light L1403L SMD Single Module

Light Features

• First Hazardous Location LED Lighting with modularization design
• AC-In LED technology increases efficiency, reduces maintenance costs and environmentally friendly
• Product uses a transparent PC cover, which is suitable for food processing plants and storage tanks where glass bursting is prohibited.

Applicable Location

• Zone 2
• Zone 21
• Class I, Division 2 (Group A, B, C and D)

Protection

Degree of Protection - IP67 / NEMA 6

IECEx Certification

• Ex nR IIC T4...T6 Gc
• Ex tb IIIC T110?C...T85?C Db

ATEX Certification

• II 3 G Ex nR IIC T4...T6 Gc
• II 2 D Ex tb T110?C...T85?C Db

UL Certification

• UL844 - Class I, Division 2 (Group A, B, C and D)
• UL1598

TS Certification

• Ex nR IIC T4...T6 Gc
• Ex tb IIIC T110?C...T85?C Db

Specification

• Volt.: 110V / 120V / 220V / 230V / 277V / 347V / 480V? (347V and 480V Only for 80W / 100W / 120W)
• Watt.: 80W / 100W / 105W / 120W / 150W
• Amps: 80W (0.17A~0.73A) / 100W (0.21A~0.91A) / 105W (0.38A~0.95A) / 120W (0.25A~1.09A) / 150W (0.54A~1.36A)

• Frequency: 50Hz / 60Hz
• Power Factor: cos?0.9, cos?0.87(480V)

Ambient Temperature

• -20?C ~ +40?C, T6 / -20?C ~ +55?C, T5 (IECEx&ATEX Certification)
• CID2: -20?C ~ +40?C, T3C / -20?C ~ +60?C, T3B?(UL Certification)

Optical Information

• CCT : ?Circle SMD-3000K (Warm White) / 5000K (Cool White) ?Rectangle SMD-2700K (Warm White) / 6500K (Cool White)
• CRI : Warm White?80?/ Cool White?70
• Lum/Watt. : ?Clear: Warm White = 95 / Cool White = 100 ?Diffuser: Warm White = 85 / Cool White = 90
• Beam Angle : X-117? / Y-117?
