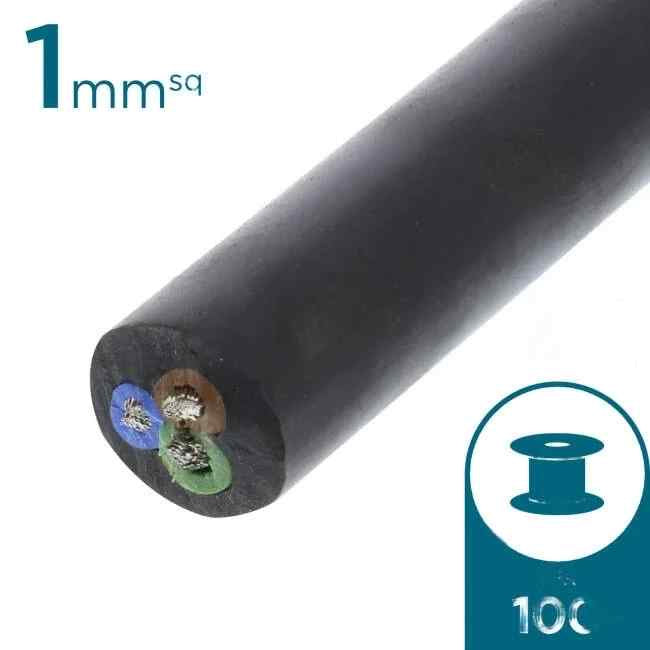

Electra 1mm 3 Core Ordinary Duty Flex Cable Black 100 Metre Roll

Application: 2 core ordinary duty cords can be used in dry situations for double insulated applications and luminaries such as hand held lamps, sewing machines and office machines, where the cord may be subject to some mechanical stress but not rough usage. 3 core ordinary duty cords can be used for extension leads and for domestic appliances. 4 and 5 ordinary duty cords are suitable for industrial and office equipment requiring three phase supply and earth connection.
Conductor: Plain annealed copper (AS/NZS 1125)
Insulation: PVC V90 (AS/NZS 3808)
Sheath: PVC V90 (AS/NZS 3808)
Voltage: 250/440V
Standards: AS/NZS 3191
Normal Operating Temperature: 105 C
Sheath Colour: Up to 4sqmm, Black, Brown, Blue, Grey, Orange, Violet, Red, White, Pink, Green/Yellow

Warranty Information:

Commercial Use 1 Year
Domestic Use 1 Year
Warranty Method Return to ALL LED DIRECT
Warranty Period 1 Year

Attributes:

Brand Electra Cables
Part Number
F3010-100BLK

Also Known As 3c Triple Core
Cable Conductor Material Annealed Copper
Cable Drum Length 100 Metres
Cable Insulation & Sheath Material PVC
Cable Sheath Colour Black
Cable Size mm 1mm
Cable Voltage 250/440 Volts
Number of Cores 3
Ordinary or Heavy Duty Ordinary Duty

Shipping Information:

Attributes
Brand Electra Cables
Part Number
F3010-100BLK

Also Known As 3c Triple Core
Cable Conductor Material Annealed Copper
Cable Drum Length 100 Metres
Cable Insulation & Sheath Material PVC
Cable Sheath Colour Black
Cable Size mm 1mm
Cable Voltage 250/440 Volts
Number of Cores 3
Ordinary or Heavy Duty Ordinary Duty
Shipping Information

Weight (kg) 7.0000
Length (mm) 230
Height (mm) 180
Width (mm) 230
Length Packaging (mm) 230
Height Packaging (mm) 180
Width Packaging (mm) 230
Barcode 9318229013420
Barcode (Secondary) 9320943154587
