Cabac Green Pillar Base With D Bolt Kit IP44 Green

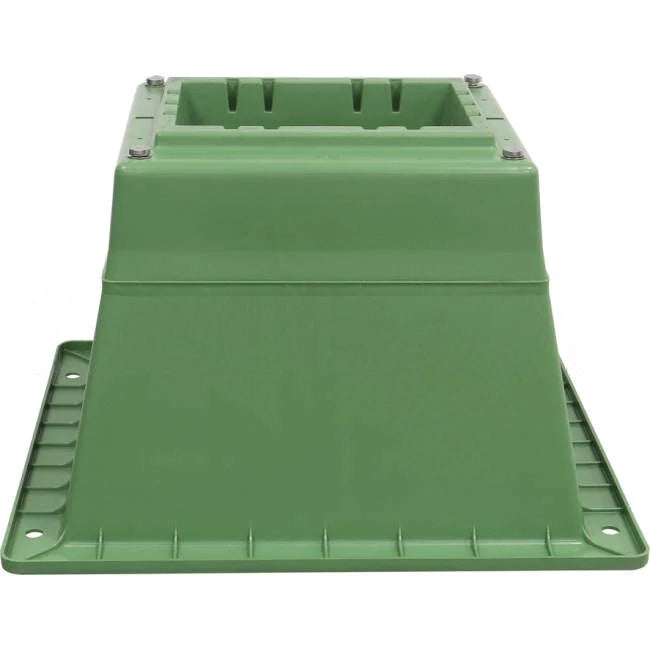

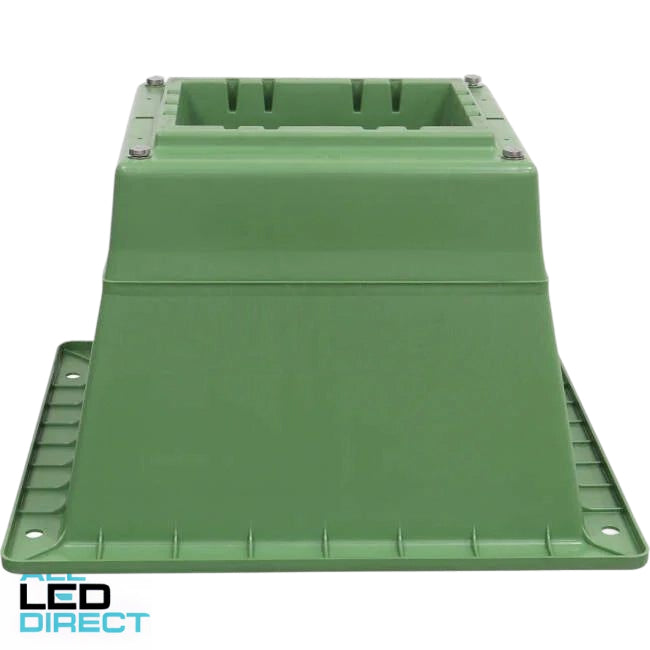

The CABAC Pillar Box Base is an all-purpose moulded plastic base to suit direct burial or slab mounting. The base can be directly buried, or bolted to a slab. For high stability on steep slopes or unstable soils the base can be attached to a steel framework and stabilised soil/concrete poured around the base.

Pillar Box Base Features:
The base is light for ease of handling, transport and storage
Slots for four standard fuse panels or one large panel
Wide skirt for increased stability
Upturned skirt lip increases resistance to pull out - dosing effect
Flat bottom for slab mounting dyna holes included
Corrosion-proof brass inserts for cover bolts
Wall design allows drilling for side entry
Able to be stacked to reduce storage costs
A datum line is provided to indicate burial depth

Suitable for Cabac Non Vented Short Green Pillar Lid, PBS-G-NV-SD

Warranty Information:

Commercial Use 1 Year
Domestic Use 1 Year
Warranty Method Return to ALL LED DIRECT
Warranty Period 1 Year

Attributes:

Brand Cabac
Part Number
PBB-G-IM-CWK

Material Polypropylene

Shipping Information:

Attributes
Brand Cabac
Part Number
PBB-G-IM-CWK

Material Polypropylene
Shipping Information

Weight (kg) 2.8800
Length Packaging (mm) 560
Height Packaging (mm) 350
Width Packaging (mm) 525
Barcode 2000100845110
Barcode (Secondary) 9318674882008
Barcode (Tertiary) 9318674507277
