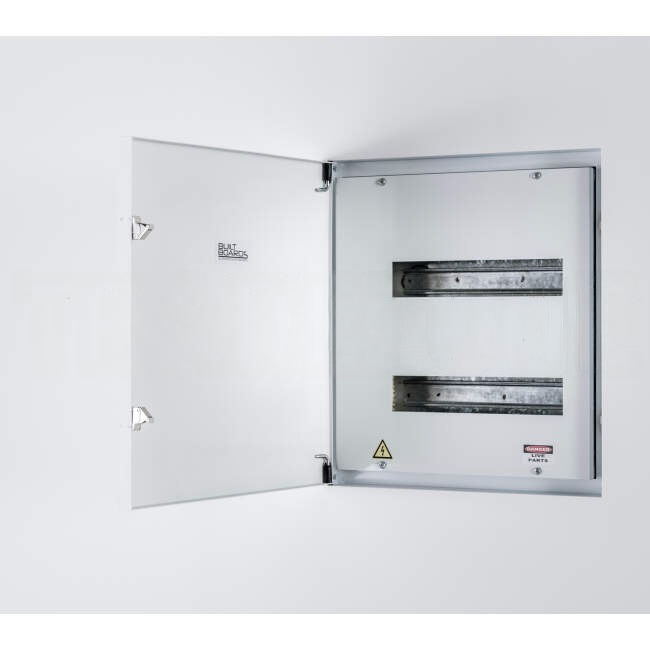

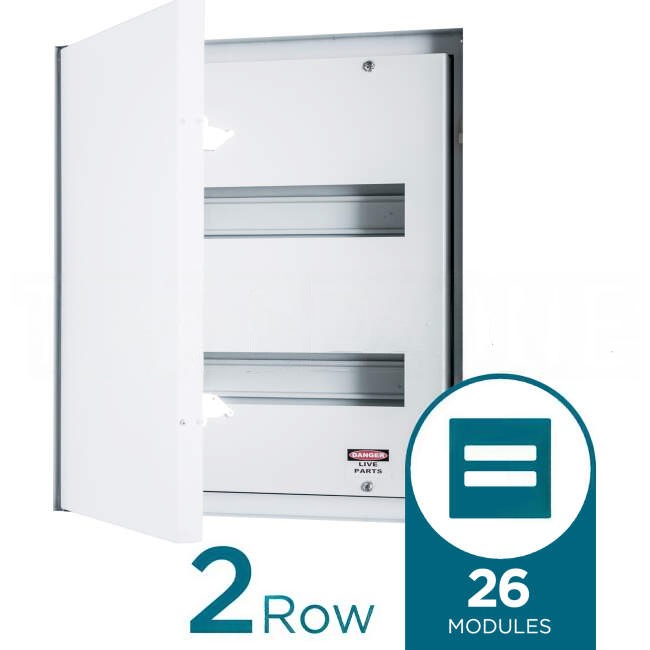

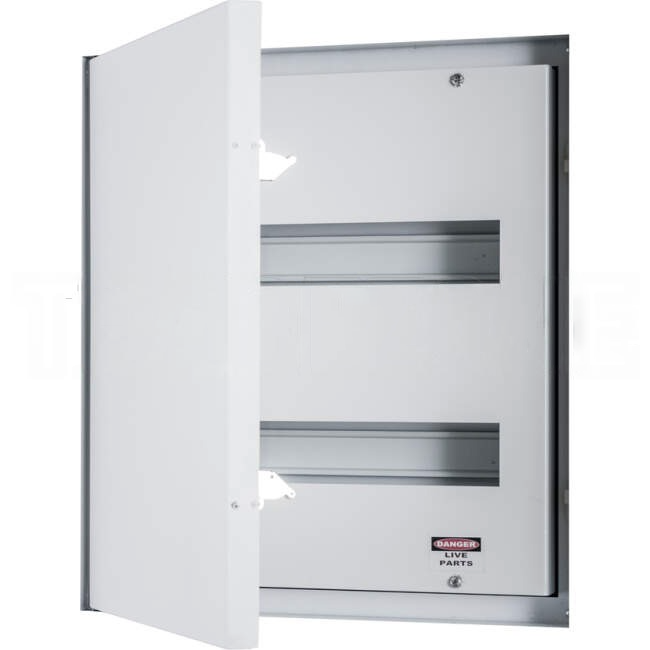

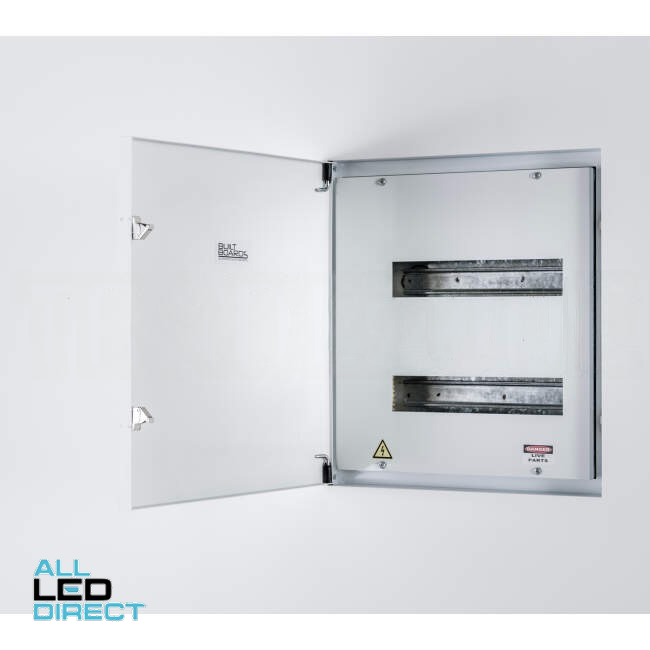

Built Boards 26 Pole INVISABOARD Flush Mounted Switchboard

The 26 pole InvisaBoard uses our TrueFlush system to give a 100% flush finish to the plaster wall.

This large board is suited to bigger installs where function and style are equally important.

InvisaBoards can be installed using our TrueFlush system or using the optional surface fit door kit.

• 26 Pole 2 x din rails.
• 395mm(W) x 435mm(H).
• 1mm steel sheet.
• Powder coat finish.
• Door is pre-primed ready for painting.

All boards come supplied with:

• Pole filler strips.
• Snap bushings.
• Circuit indication sticker kit.

A surface fit door kit has also been developed for the situation where the TrueFlush component has not been plastered in. The door kit sits on the plaster surface. P/N BBINVISA26SMD

Warranty Information (From Install)

• Commercial Use 2 Years
• Domestic Use 2 Years
• Warranty Method Return to All Led Direct
• Warranty Period 2 Years

Attributes

• Brand Built Boards
• Part Number - BBINVISA26
• Also Known As Sub board panel board
• Colour White
• Door Hinge Direction Side Hinge
• IP Rating IP30
• Material Metal
• Number Of Rows 2 Rows
• Plain or Transparent Door Plain
• Poles 26 Pole
• With Or Without Door With Door

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 12.0000
• Length (mm) 400
• Height (mm) 440
• Width (mm) 70
• Length Packaging (mm) 680
• Height Packaging (mm) 650
• Width Packaging (mm) 100
• Barcode 2000100831458
