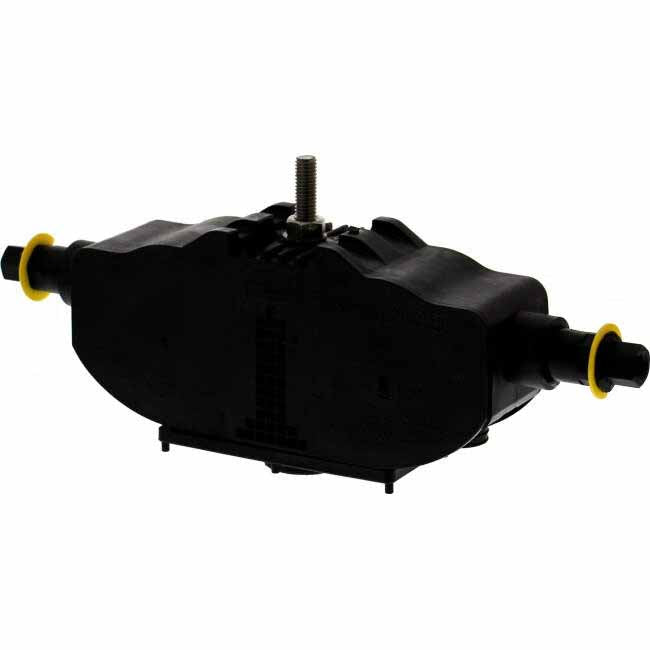

Sicame 100 Amp 6 - 95 Sqmm Fuse Switch Disconnect

Sicame 100 Amp 6 - 95 Sqmm Fuse Switch Disconnect.

Application

For pole mounted fusing of overhead house service up to 100A. Constructed with no corrosive materials to provide long in-service life in outdoor environments. Lower fuse carrier accepts BS 58x22 round fuse elements and is fitted with high-visibility house number plates to avoid incorrect disconnection.

Features

’??ƒ?§ UV stabalised, impact resistant and flame retardent body

’??ƒ?§ Insulation piercing connectors on both line and load side

’??ƒ?§ Tested to AS/NZS 60269.2.1

’??ƒ?§ Top mounted stainless steel bracket M8 fixing bolt insulated from active components

’??ƒ?§ Underside cable entry to IPC connectors creating a natural drip loop

’??ƒ?§ Conductor seal fully encapsulates conductor end

’??ƒ?§ Utilises shear head technology

’??ƒ?§ Shear-head bolts located at end of fuse for easier installation

’??ƒ?§ UV stabilised bird guard over cable seals

’??ƒ?§ Completely waterproof bi-metallic connection

’??ƒ?§ Perforated body to provide cross-flow ventilation

’??ƒ?§ Range of brackets to suit various applications

’??ƒ?§ IP44 ’??ƒ?§ Fuse is full vented to deny air circulation around fuse

’??ƒ?§ Standard pig tail stick to operate service fuse base

’??ƒ?§ Optional high-visibility house numbering system

’??ƒ?§ Fuse is fully vented.

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Sicame
• Part Number -??¨PFV100695
• Also Known As PFV100 695
• Amperage Range 100 Amps

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.5000
• Height (mm) 260
• Width (mm) 50
• Length Packaging (mm) 120
• Height Packaging (mm) 260
• Width Packaging (mm) 50
• Barcode 2000100203576
