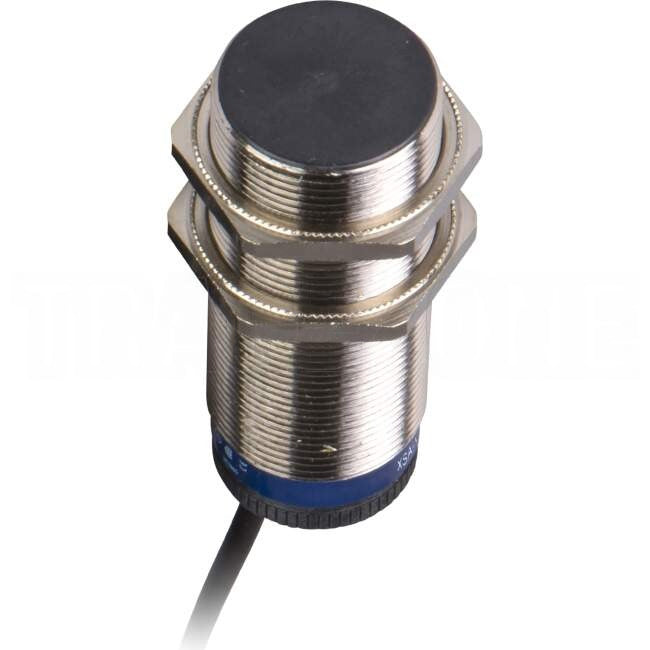

Schneider Rotation Monitoring Sensor M30 x 81mm 12-48 Volt DC 6-150 cycles/min 10mm Sensing Distance

Schneider Rotation Monitoring Sensor M30 x 81mm 12-48 Volt DC 6-150 cycles/min 10mm Sensing Distance

$460.60 AUD
$460.60 AUD $460.60 AUD
Sale Sold out
Tax included.
This cylindrical diameter 30 mm threaded M30 x 1.5 flush mountable sensor is part of XS range, an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected, thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products). It features a nickel plated brass case and a 2m long cable. It has a sensing distance of 10mm, three-wire, DC supply, 12V to 48V, NO function, PNP solid state output. These self-contained rotation speed monitoring sensors have the special feature of incorporating, in the same case, the pulse sensing and processing electronics as well as the output switching amplifier. that are required to establish an integrated rotation monitoring device. The unit provides an economical solution for detecting slip, belt breakage, drive shaft shear and overloading, etc. In the following applications, conveyor belts, bucket elevators, Archemedian screws, grinders, crushers, pumps, centrifugal driers, mixers, etc.

Warranty Information (From Install)

  • Commercial Use
  • Domestic Use
  • Warranty Method
  • Warranty Period

Attributes

  • Brand Schneider
  • Part Number - XSAV11373
  • Also Known As Telemecanique Sensors & Switches OsiSense CLIXSAV11373
  • Lead Length 2 Metres
  • Sensor Detection Range 10mm
  • Voltage 12-48 V DC

Shipping Information

  • Freight Levy Freight Free on LED Couriers for orders over $500
  • Weight (kg) 0.0000
  • Length Packaging (mm) 130
  • Height Packaging (mm) 40
  • Width Packaging (mm) 95
  • Barcode 3389110628944
