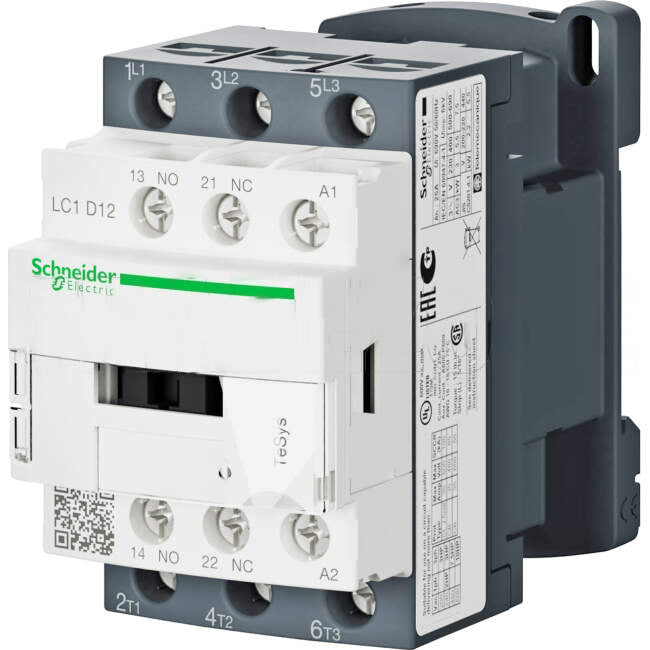

Schneider Contactor 12 Amps 3P 24 Volt AC 1 x N/O & 1 x N/C

TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Warranty Information (From Install)

• Commercial Use
• Domestic Use
• Warranty Method
• Warranty Period

Attributes

• Brand Schneider
• Part Number - LC1D12B7
• Also Known As TeSys D TeSys Deca Series Industrial Contactors CLILC1D12B7

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.3650
• Length Packaging (mm) 115
• Height Packaging (mm) 45
• Width Packaging (mm) 95
• Barcode 3389110349160
