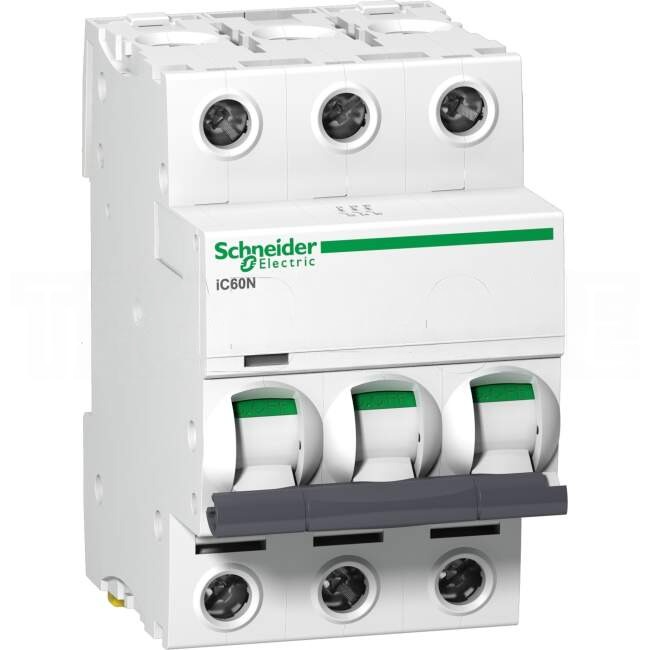

Schneider 63 Amp ACTI9 IC60N Miniature Circuit Breaker MCB C Curve 3 Pole
Schneider 63 Amp ACTI9 IC60N Miniature Circuit Breaker MCB C Curve 3 Pole
Giving you absolute peace of mind when it comes to circuit protection and continuity of service, the miniature circuit breakers are especially ideal if you are working within polluted environments and networks
With exclusive features, the Acti9 iC60 DIN rail miniature circuit breakers have been specifically designed to provide first-rate protection and continuity of service.
VisiSafe: provides protection during maintenance work on downstream circuits
VisiTrip: signals with a redflag the faulty miniature circuit breaker outgoers to reduce intervention time
Class-2 insulation: double insulation distance to ensure continuous protection for both operators and unqualified persons
Pollution Class 3 for operation in more polluted environments such as some industrial applications
Fully compliant with standards IEC/EN 60898-1 and IEC/EN 60947-2
Add-on fully immune Acti9 iC60 Vigi earth leakage protection devices: improved continuity of service, especially in polluted environments and networks
Offers a wide range of electrical auxiliaries: remote indication of Acti9 iC60 status and several tripping actuators: shunt trip, undervoltage trip, overvoltage trip.
Acti9 iC60 MCBs belong to Acti9 complete electrical system providing protection, monitoring and control of your electrical installation.
Warranty Information (From Install)
- Commercial Use 1 Year
- Domestic Use 1 Year
- Warranty Method Return to All Led Direct
- Warranty Period 1 Year
Attributes
- Brand Schneider
- Part Number - A9F44363
- Also Known As Acti 9 iC60 Series Acti9 CLIA9F44363
- Amperage Range 63 Amps
- Poles 3 Pole
- Trip Current 6 kA
- Trip Curve C Curve
- Voltage 415 Volts
Shipping Information
- Freight Levy Freight Free on LED Couriers for orders over $500
- Weight (kg) 0.3870
- Length Packaging (mm) 55
- Height Packaging (mm) 85
- Width Packaging (mm) 75
- Barcode 3606480513473
- Barcode (Secondary) 13606480513470
