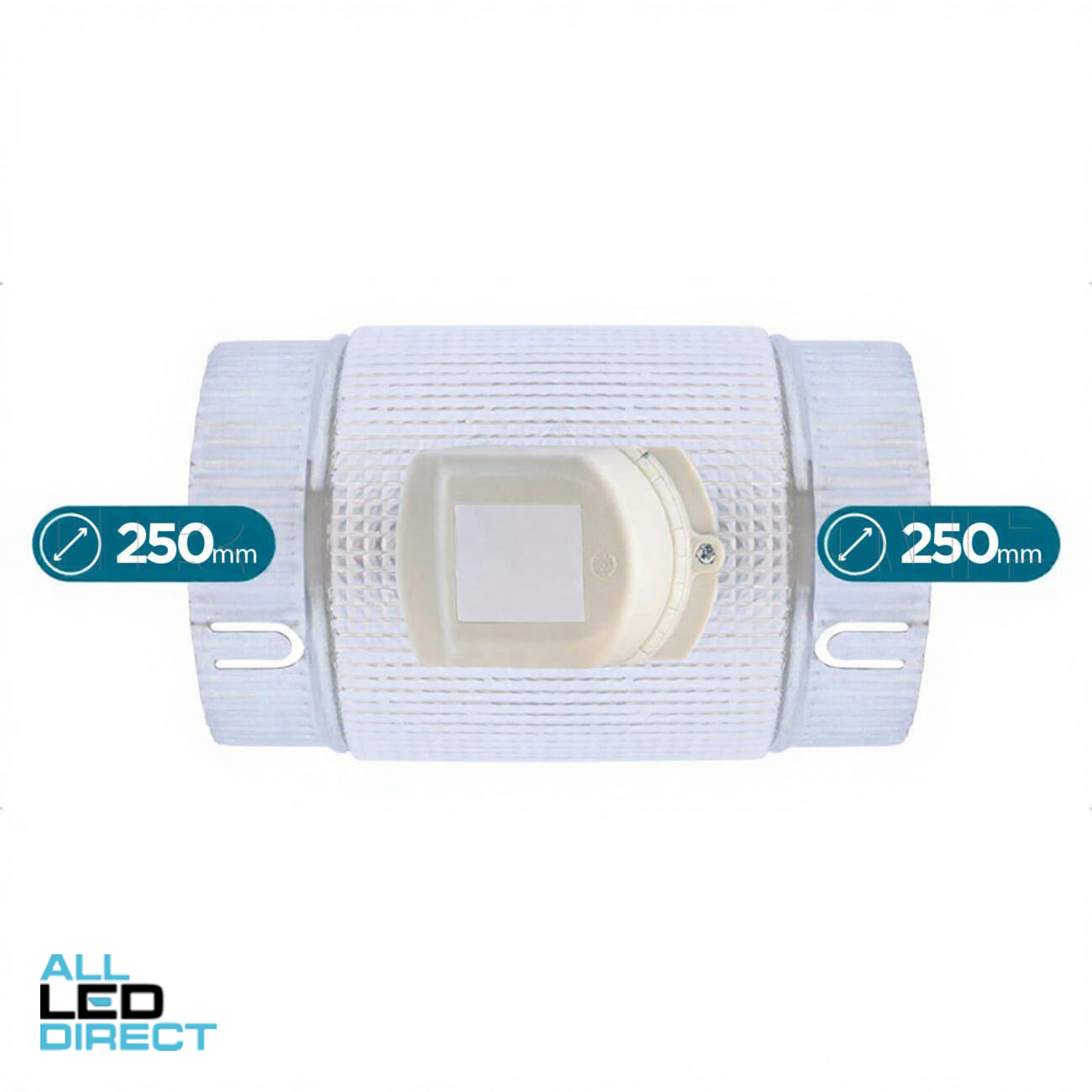

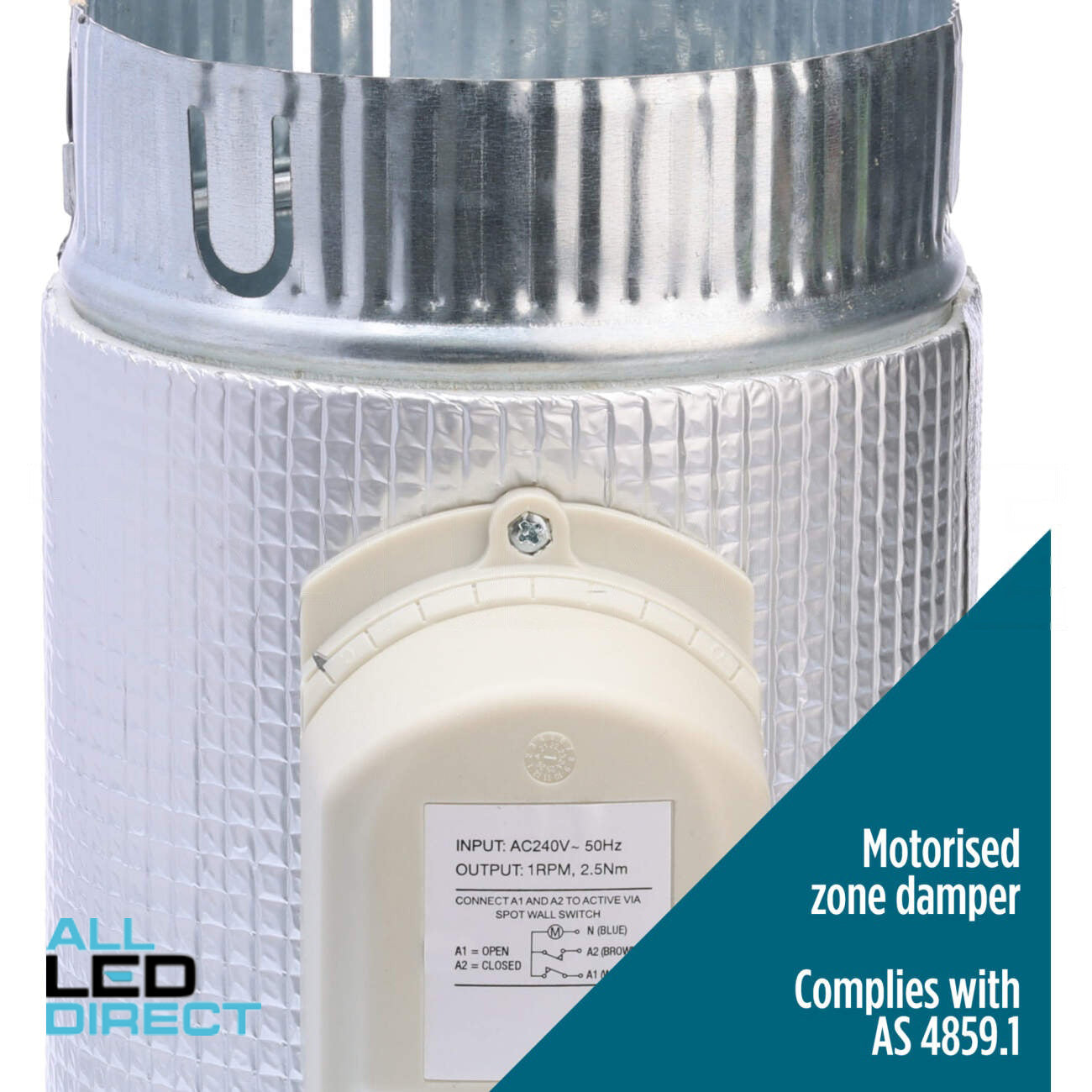

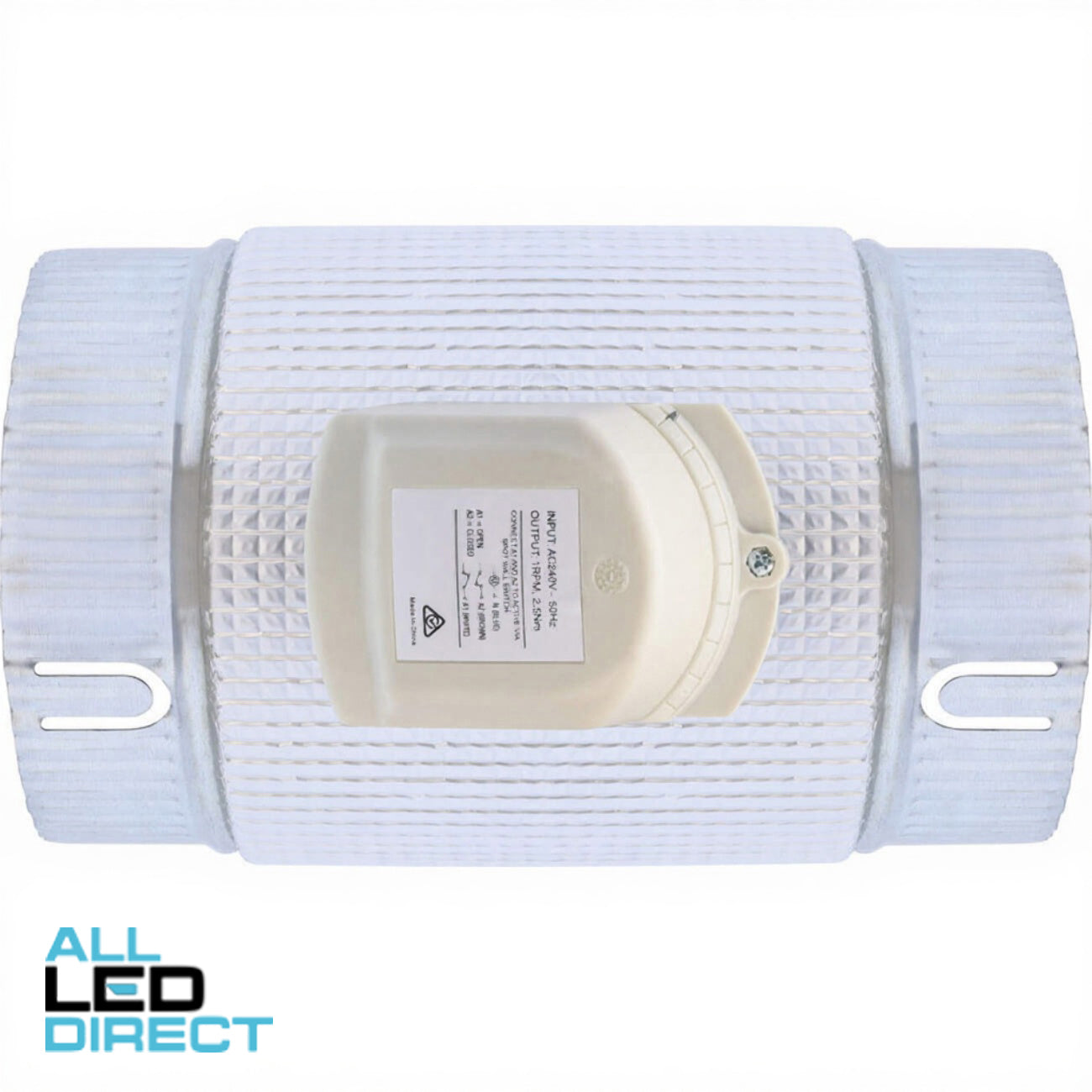

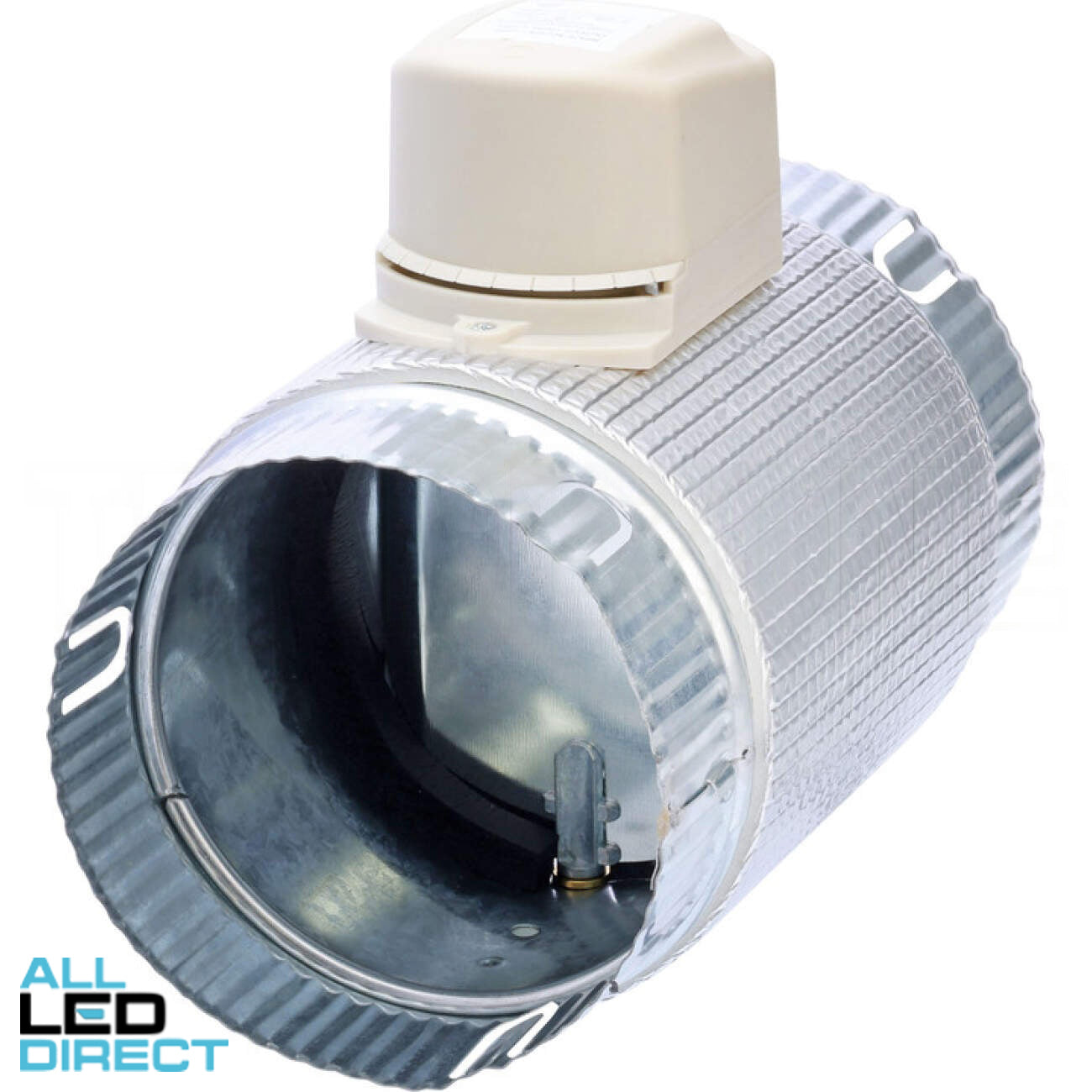

Powerwave Air 250mm DODC Motorised Metal Zone Damper 240 Volt

The Motorised Damper allows the end user to remotely open and close air flows to designated areas.

The damper barrel has swage and Unilock for ease of attachment to the flexible duct sizes. The electrical damper motor has a torque of 2.5Nm and 1RPM in 240V and 24V with a full range of electrical components such as touch pads, transformers and zone cables

Features:

• Strong electric motor with torque of 2.5Nm
• Electric motor wattage: 5W
• Strong barrel and blade with excellent seal
• Silver Insulation on the barrel
• Dimension tolerance is ±1mm




• Warranty Information

  Warranty Method Return

  Commercial Use  1 Years

  Domestic Use  1 Years

  Warranty Period  1 Years



  Attributes

  Brand    Powerwave Air
  Part Number  ZD250
  Material   Metal

  Size  250mm


  Sub Category  Dampers

  Voltage 24 Volts

  With Cable No




  Shipping Information

  Freight Levy    Freight Applies To All Postcodes
  Weight (kg)    2.0000

  Length (mm)    250
  Height (mm)    340
  Width (mm)    250

  Length Packaging (mm)    250
  Height Packaging (mm)    340
  Width Packaging (mm)    250
