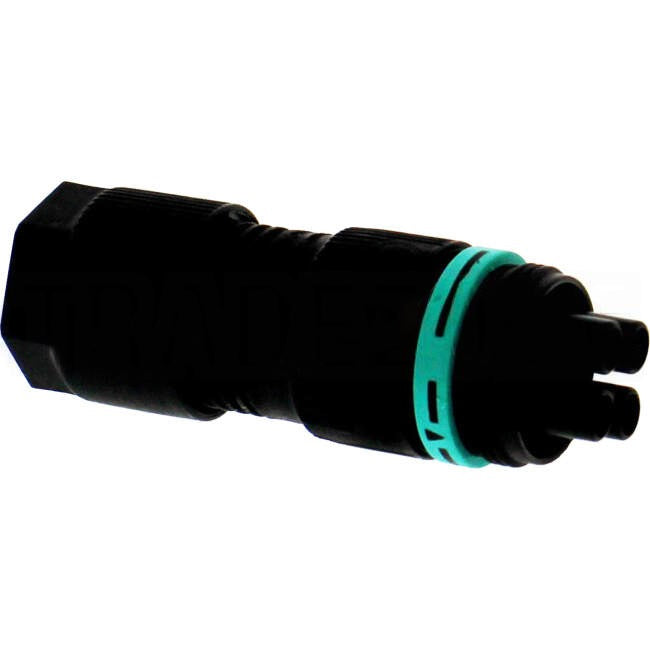

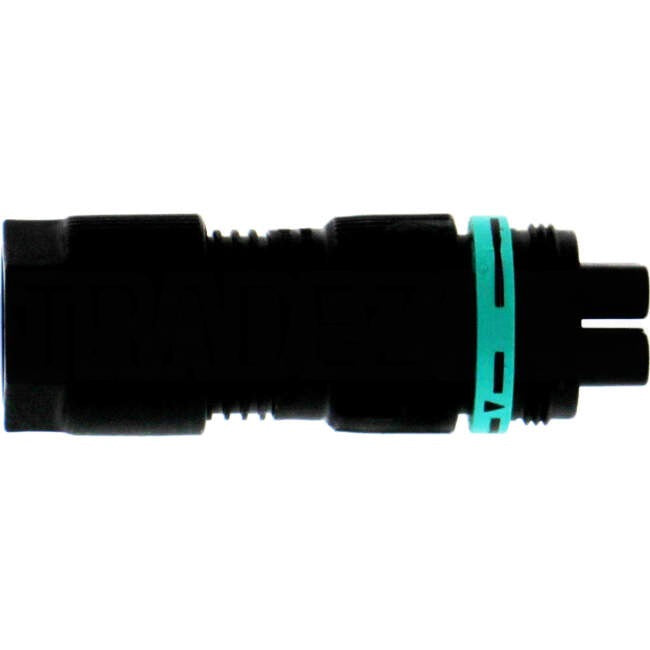

Power Flex Cables 4 Pole Female In Line Connector Submersible IP68

Connection Female

No of poles 4

Contact marking 1 - 2 - 3 - 4(E)

Type of connection screw (M3 - max. 0.5 Nm) O

perating current max. 17.5A (EN61984)

Operating voltage max. 450V (EN61984)

Impulse withstand voltage 4KV

Operating temperature range -40°C / +125°C

Wire cross-section min. - max. (Stranded cable) 0.5 mm² - 4.0 mm²

Cable diameter min. - max. 7.0 mm - 13.5 mm

IP Rating IP66/IP68 (30m,3h)

Corrosion resistance Salt mist, 1.000 ore, 5% salt solutions, 35°C EN60068-211:2000, Test Ka (168h)

Standards EN 61984:2009

Warranty Information (From Install)

• Commercial Use 2 Years
• Domestic Use 2 Years
• Warranty Method Return to All Led Direct
• Warranty Period 2 Years

Attributes

• Brand Power Flex Cables
• Part Number - THB.387.B4A.LZ
• Also Known As P3874PFL

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.0026
• Length Packaging (mm) 70
• Height Packaging (mm) 25
• Width Packaging (mm) 25
• Barcode 2000100752463
