Pierlite Smart Scan MKII Occupancy Sensor

Pierlite Smart Scan MKII Occupancy Sensor

$127.45 AUD
$127.45 AUD $127.45 AUD
Sale Sold out
Tax included.

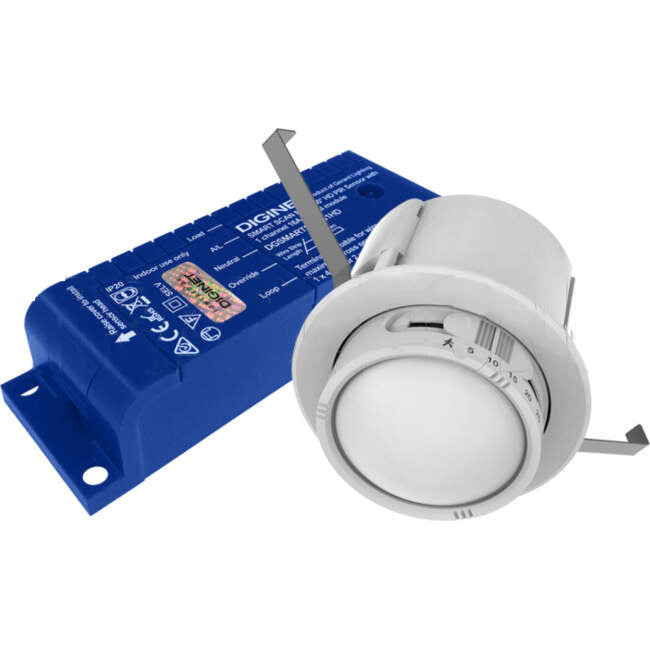

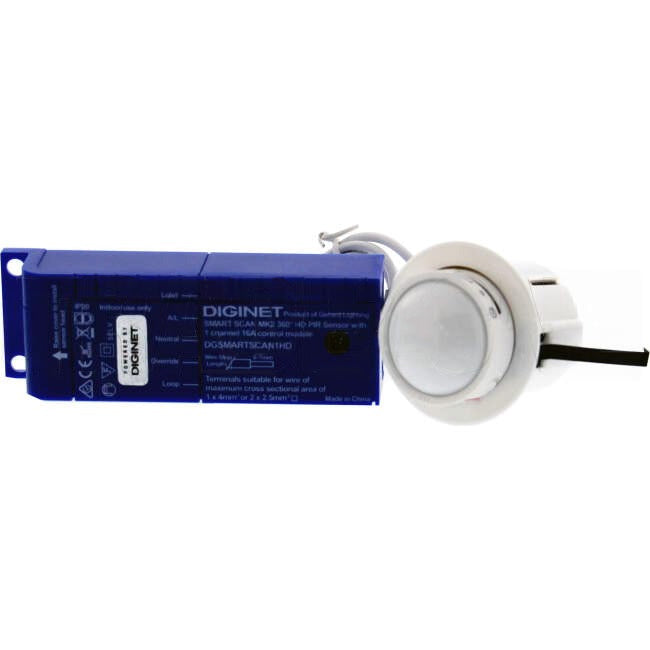

The ceiling mounted motion sensors consists of two items; a 360 degree high definition passive infrared (HDIR™) sensor head and a control/relay module.

  • High sensitivity 360˚ detection array designed for both minor and major movement applications
  • Integrated light level detector to inhibit switch-on if there is sufficient natural light available
  • Rated at 16A for switching inductive/capacitive loads
  • Flush ceiling mounted motion sensor.
  • Unobtrusive, 60mm diameter flush-mount design
  • Hidden yet easily accessible sensor head adjustment controls for time-out and light level adjustment
  • Includes a switch input that denys for manual override off control

Warranty Information (From Install)

  • Commercial Use 2 Years
  • Domestic Use 2 Years
  • Warranty Method Return to All Led Direct
  • Warranty Period 2 Years

Attributes

  • Brand Pierlite
  • Part Number - DGSMARTSCAN1HD
  • Colour White
  • IP Rating IP20
  • Sensor Degrees 360 Degrees
  • Sensor Detection Range 7 Metres

Shipping Information

  • Freight Levy Freight Free on LED Couriers for orders over $500
  • Weight (kg) 0.3000
  • Length Packaging (mm) 190
  • Height Packaging (mm) 75
  • Width Packaging (mm) 100
  • Barcode 9319250623626
