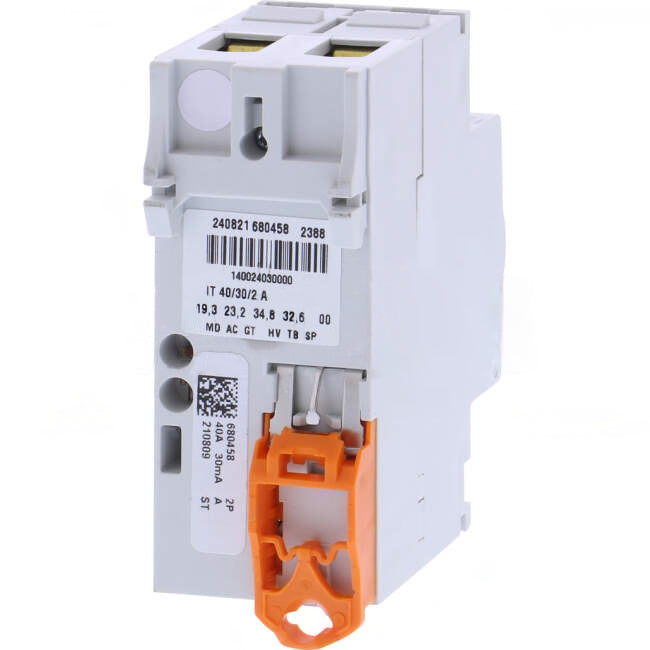

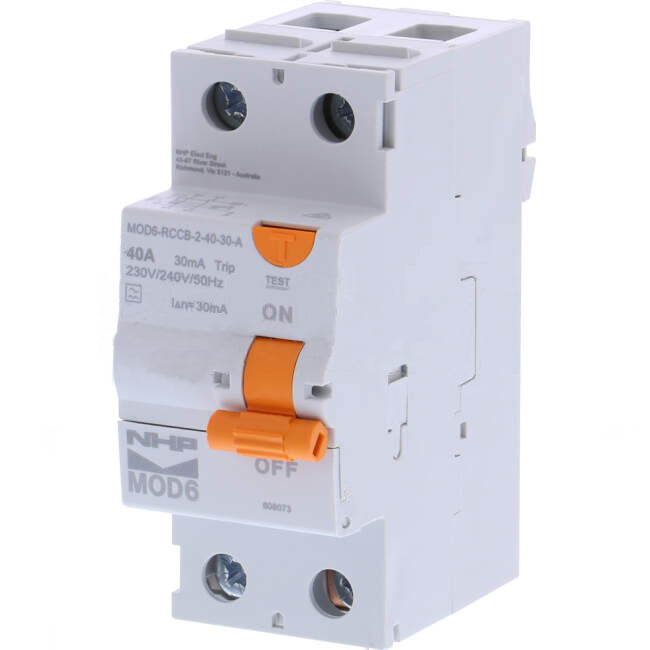

NHP 40 Amp MOD6 Residual Current Device RCD 2 Pole Type A 30mA

Complies with AS/NZS 61008

MOD6 RCCBs feature 6kA conditional short circuit rating

1P+N and 3P+N for single or three phase loads

Type AC or Type A RCD option

30mA sensitivity featured as standard simplifying the selection for personnel protection applications

Fast connection pin/fork busbar comb or busbar chassis

Suits pole covers and loadcentres

Approval No NSW17482 or RCM Mark

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand NHP
• Part Number - MOD6RCCB24030A
• Also Known As NHPMOD6RCCB24030A
• Amperage Range 40 Amps
• Number Of DIN Modules 2 Module
• Poles 2 Pole
• Trip Current 6 kA
• Trip Curve C Curve
• Voltage 240 Volts

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.2400
• Length (mm) 76
• Height (mm) 86
• Width (mm) 36
• Length Packaging (mm) 92
• Height Packaging (mm) 42
• Width Packaging (mm) 82
• Barcode 2000100864203
• Barcode (Secondary) 5413656080732
