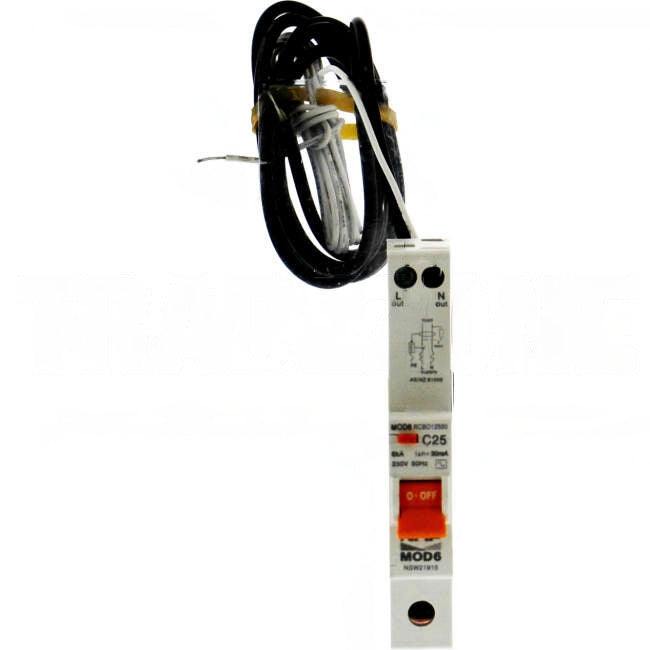

NHP 25 Amp MOD6 Miniature Circuit Breaker & Residual Current Device MCB/RCD RCBO C Curve 1 Pole 6kA 30mA
NHP 25 Amp MOD6 Miniature Circuit Breaker & Residual Current Device MCB/RCD RCBO C Curve 1 Pole 6kA 30mA
Regular price
$45.08 AUD
Regular price
$45.08 AUD
Sale price
$45.08 AUD
Unit price
per
- Compact single screw RCBO (panelboard model and loadcentre) features earth reference lead ensuring correct operation in case of loss of neutral and a neutral pigtail saving cable and installation time
- Compact double screw RCBO (loadcentre model) easily combines with insulated busbar comb, eliminating any need for custom busbars and saving installation time
- MOD6 RCBOs feature 6kA short circuit rating
- 30mA sensitivity featured as standard on all MOD6 RCCBs and RCBOs simplifying the selection for general personnel protection applications
Warranty Information (From Install)
- Commercial Use 1 Year
- Domestic Use 1 Year
- Warranty Method Return to All Led Direct
- Warranty Period 1 Year
Attributes
- Brand NHP
- Part Number - MOD6RCBO12530AL
- Also Known As RCCB Residual Circuit Breaker Residual Circuit Breakers GFCI GFI ALCI RCD Safety Switch Safety Switches NHPMOD6RCBO12530AL
- Amperage Range 25 Amps
- Number Of DIN Modules 1 Module
- Poles 1 Pole
- Trip Current 6 kA
- Trip Curve C Curve
- Voltage 240 Volts
Shipping Information
- Freight Levy Freight Free on LED Couriers for orders over $500
- Weight (kg) 0.2600
- Length (mm) 76
- Height (mm) 125
- Width (mm) 18
- Length Packaging (mm) 138
- Height Packaging (mm) 40
- Width Packaging (mm) 80
- Barcode 9321807197726
- Barcode (Secondary) 5413656054498
