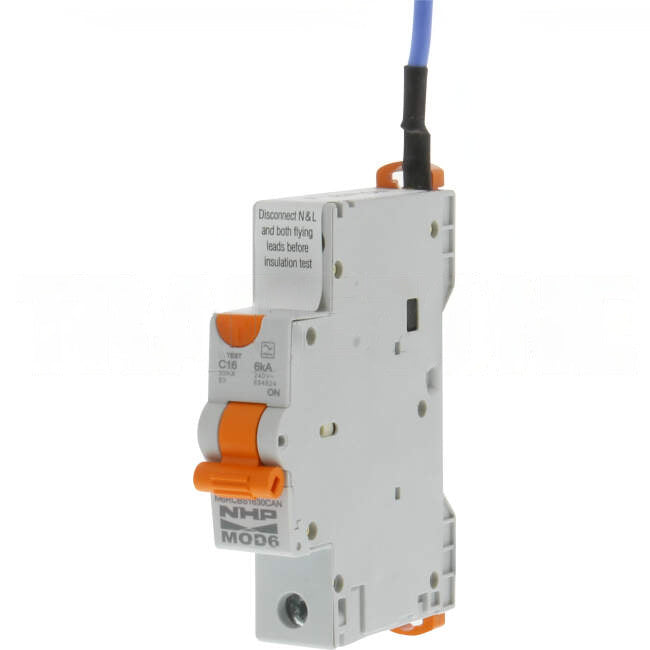

NHP 16 Amp MOD6 Miniature Circuit Breaker & Residual Current Device MCB/RCD RCBO C Curve 1 Pole 6kA 30mA ESV APPROVED

NHP 16 Amp MOD6 Miniature Circuit Breaker & Residual Current Device MCB/RCD RCBO C Curve 1 Pole 6kA 30mA ESV APPROVED

Regular price $51.29 AUD
Regular price $51.29 AUD Sale price $51.29 AUD
Sale Sold out
Tax included.
  • Complies with Energy Saftey Victoria Standards AS/NZS 4417.2
  • Compact single screw RCBO (panelboard model and loadcentre) features earth reference lead ensuring correct operation in case of loss of neutral.
  • Compact double screw RCBO (loadcentre model) easily combines with insulated busbar comb, eliminating any need for custom busbars and saving installation time
  • MOD6 RCBOs feature 6kA short circuit rating
  • 30mA sensitivity featured as standard on all MOD6 RCCBs and RCBOs simplifying the selection for general personnel protection applications

Warranty Information (From Install)

  • Commercial Use 1 Year
  • Domestic Use 1 Year
  • Warranty Method Return to All Led Direct
  • Warranty Period 1 Year

Attributes

  • Brand NHP
  • Part Number - M6RCBD1630CAN
  • Also Known As RCCB Residual Circuit Breaker Residual Circuit Breakers GFCI GFI ALCI RCD Safety Switch Safety Switches NHPM6RCBD1630CAN
  • Amperage Range 16 Amps
  • Number Of DIN Modules 1 Module
  • Poles 1 Pole
  • Trip Current 6 kA
  • Trip Curve C Curve
  • Voltage 240 Volts

Shipping Information

  • Freight Levy Freight Free on LED Couriers for orders over $500
  • Weight (kg) 0.1400
  • Length (mm) 76
  • Height (mm) 86
  • Width (mm) 18
  • Length Packaging (mm) 105
  • Height Packaging (mm) 20
  • Width Packaging (mm) 75
  • Barcode 5413656946748
