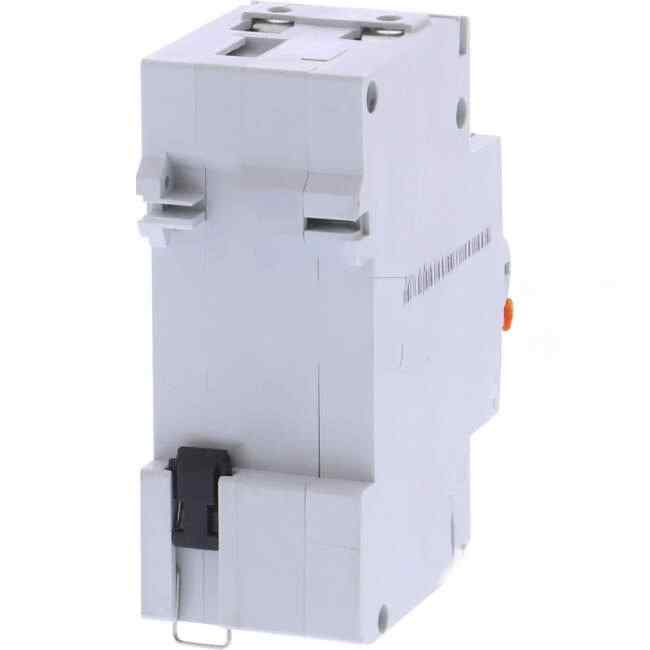

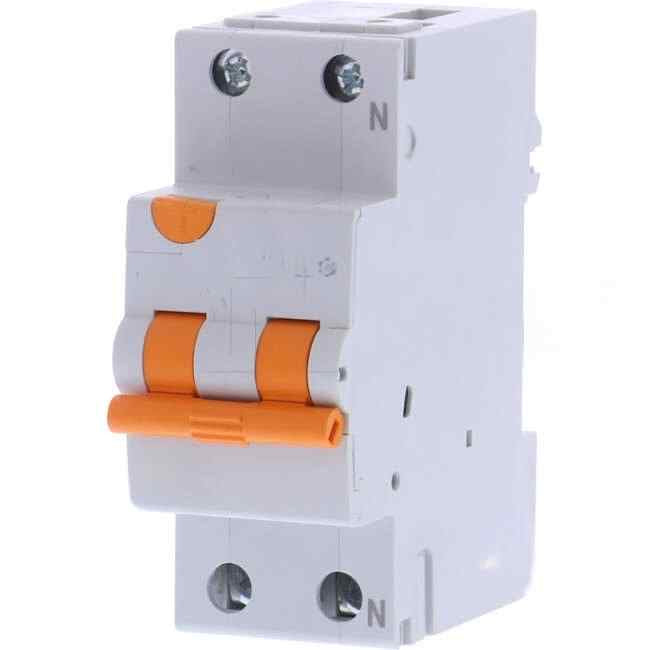

NHP 10 Amp MOD6 Miniature Circuit Breaker & Residual Current Device MCB/RCD RCBO C Curve 2 Pole 6kA 30mA Type A
NHP 10 Amp MOD6 Miniature Circuit Breaker & Residual Current Device MCB/RCD RCBO C Curve 2 Pole 6kA 30mA Type A
Regular price
$38.13 AUD
Regular price
$38.13 AUD
Sale price
$38.13 AUD
Unit price
per
Tax included.
Couldn't load pickup availability
MOD6 RCBO, 2P, 6kA, 30mA, 10A, type A, no pigtai
- Complies with AS/NZS 61009 (RCBOs)
- MOD6 RCBOs feature 6kA short circuit rating
- Type AC or Type A RCD with switched neutral
- 30mA sensitivity general personnel protection applications
- 10mA sensitivity option for higher risk applications
- C trip curve for general light and power applications
- Fast connection pin/fork busbar comb
- Suits pole-covers and loadcentres
- Approval No NSW17482 or RCM
- Energy Safe Victoria (ESV) compliant for residential applications
- 10mA units compliant with Type 1 requirements
Warranty Information (From Install)
- Commercial Use 1 Year
- Domestic Use 1 Year
- Warranty Method Return to All LED Direct
- Warranty Period 1 Year
Attributes
- Brand NHP
- Part Number - MOD6RCBO21030A
- Also Known As RCCB Residual Circuit Breaker Residual Circuit Breakers GFCI GFI ALCI RCD Safety Switch Safety Switches MOD6RCBO2-10-30-A NHPMOD6RCBO21030A
- Number Of DIN Modules 2 Module
- Poles 2 Pole
- Trip Current 6 kA
- Trip Curve C Curve
Shipping Information
- Freight Levy Freight Free on LED Couriers for orders over $500
- Weight (kg) 0.2400
- Length (mm) 76
- Height (mm) 86
- Width (mm) 36
- Length Packaging (mm) 95
- Height Packaging (mm) 40
- Width Packaging (mm) 80
- Barcode 5413656915751
