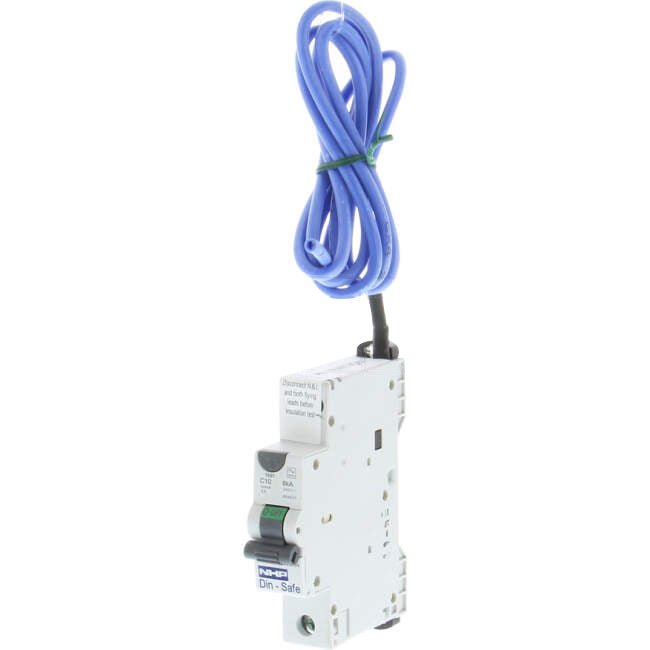

NHP 10 Amp DIN-T Miniature Circuit Breaker & Residual Current Device MCB/RCD RCBO 1 Pole 6kA 30mA ESV APPROVED

NHP 10 Amp DIN-T Miniature Circuit Breaker & Residual Current Device MCB/RCD RCBO 1 Pole 6kA 30mA ESV APPROVED

$158.26 AUD
$158.26 AUD $158.26 AUD
Sale Sold out
Tax included.
  • Improved immunity to harmonics avoiding inconvenient service interruption
  • Large selection of current ratings for all commercial and industrial applications
  • Various RCD types including AC, A, S, F and type B are available ensuring whatever the load(s) connected, you and/or the installation is protected from earth leakage currents
  • Wide range of trip sensitivity options to choose from with 10mA up to 500mA RCDs covering any application requirement
  • 6 or 10kA short circuit capacity available for RCBOs
  • Compatibility with a wide range of DIN-T MCB accessories including auxiliaries, shunt and undervoltage trip, motor operator, locking devices, pole covers and more

Warranty Information (From Install)

  • Commercial Use 1 Year
  • Domestic Use 1 Year
  • Warranty Method Return to All Led Direct
  • Warranty Period 1 Year

Attributes

  • Brand NHP
  • Part Number - DSRCBS1030CAN
  • Also Known As RCCB Residual Circuit Breaker Residual Circuit Breakers GFCI GFI ALCI RCD Safety Switch Safety Switches NHPDSRCBS1030CAN
  • Amperage Range 10 Amps
  • Number Of DIN Modules 1 Module
  • Poles 1 Pole
  • Trip Current 6 kA
  • Trip Curve C Curve
  • Voltage 240 Volts

Shipping Information

  • Freight Levy Freight Free on LED Couriers for orders over $500
  • Weight (kg) 0.1364
  • Length (mm) 76
  • Height (mm) 86
  • Width (mm) 18
  • Length Packaging (mm) 138
  • Height Packaging (mm) 40
  • Width Packaging (mm) 80
  • Barcode 5413656948353
