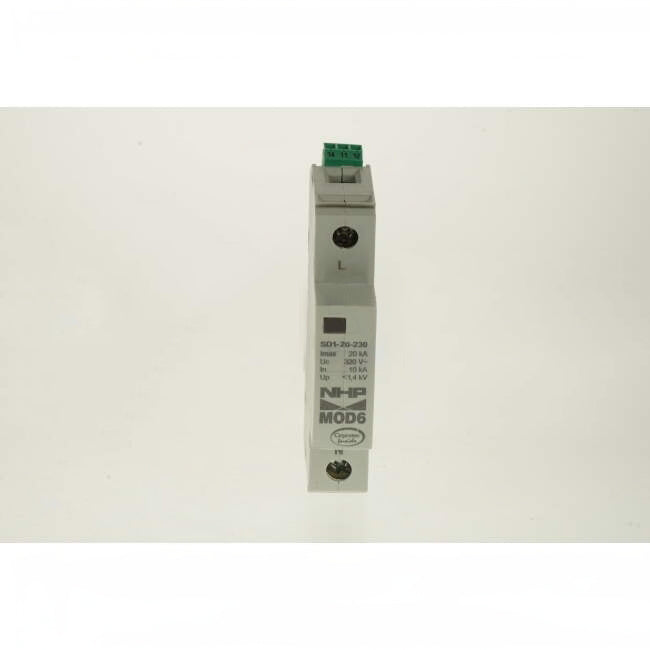

NHP 1 Pole 1 Module 20kA MOD6 Surge Protection Diverter

• High discharge capacity with an 8/20 s waveform Imax 40kA or 20kA
• Product Series: MOD6
• Standards Compliance: IEC 61643-1 IEC 61643-11
• Protection Modes: L-N
• Component Type Surge Protection: Electrical Network Diverter
• Monitoring Contact Configuration: 1 CO
• Imax, Discharge Current, (8/20) L-N, Max: 20
• In, Discharge Current, (8/20) L-N, Nom: 10
• Icc, Current, Short Circuit Withstand: 25
• Depth: 70
• Fuse Current Rating, Max: 63
• Height: 90
• Indicator Type: Red/Green Flag
• Mounting: DIN-35 Rail Mount
• Number of DIN Modules: 1
• Number of Poles: 1
• Poles: 1P
• Uc, Continuous Operating Voltage, AC, Max: 320
• Un, Nominal Operational Voltage, AC: 230
• Up, Voltage Protection Level: 1.4
• Width: 18
• tA, Response time (L-N): 25
• Remote Monitoring: Yes
• Visual Indication: Yes

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand NHP
• Part Number - MOD6SD120230
• Also Known As NHPMOD6SD120230
• Maximum Discharge Current 20kA
• Mounting Din Rail
• Number Of DIN Modules 1 Module
• Poles 1 Pole

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.1000
• Length (mm) 70
• Height (mm) 90
• Width (mm) 18
• Length Packaging (mm) 108
• Height Packaging (mm) 80
• Width Packaging (mm) 26
• Barcode 9321807207982
• Barcode (Secondary) 8435297837459
