Molex POWERCAT 6A Cable 4 Pair U/FTP Shielded Blue 500 Metre Drum

The PowerCat 6A Shielded Cable is a key component of the PowerCat 6A end-to-end solution.

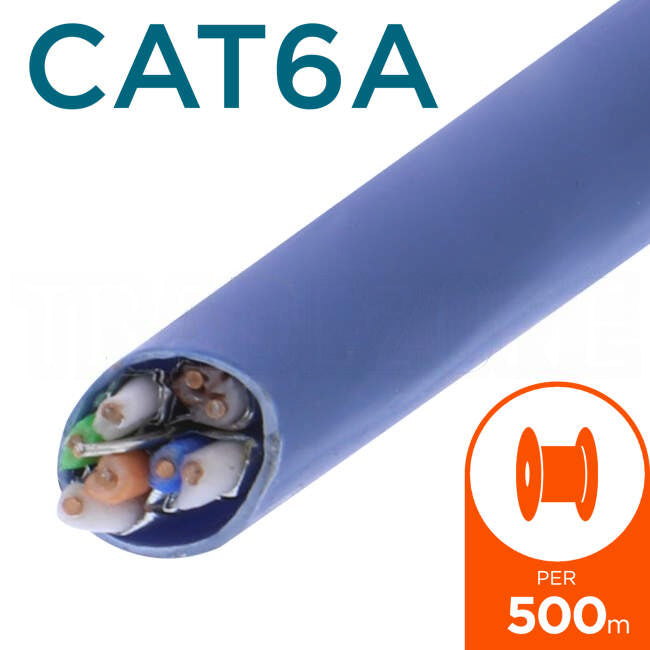

Molex PowerCat 6A U/FTP Cable is specifically designed to support high speed data network applications such as 10-Gigabit Ethernet (10GBASE-T). The cable is constructed of 4 screened pairs and a drain wire. This cable minimises alien crosstalk, provides excellent signal isolation and provides superior electromagnetic interference (EMI) protection.

Molex recommends that the full range of PowerCat 6A Shielded products be used in a system to maximise cabling performance. This system is compliant with ISO/IEC 11801 amendment 1 and TIA/EIA 56B.2-10 for the support of 10GBASE-T.

• Outstanding signal isolation
• The cable is compliant with ISO/IEC 11801 amendment 2 and TIA/EIA 568-C.2
• Enhanced performance 4 pair U/FTP LS0H cable
• Resistant to alien crosstalk
• Colour coded for ease of termination

Warranty Information (From Install)

• Commercial Use    1 Year
• Domestic Use    1 Year
• Warranty Method    Return to All Led Direct
• Warranty Period    1 Year

Attributes

• Brand    Molex
• Part Number - CAA-0322L-BL
• Also Known As    cat6A cable cat wire
• Cable Drum Length    500 Metres
• Cable Sheath Colour    Blue
• Category Type    CAT6A
• Data Cable Screening Type    U/FTP (Unshielded Foiled Twisted Pair)
• Data Cable Type    Shielded

Shipping Information

• Freight Levy    Freight Free on LED Couriers for orders over $500
• Weight (kg)    22.0000
• Length Packaging (mm)    400
• Height Packaging (mm)    265
• Width Packaging (mm)    400
• Barcode    2000100838181
• Barcode (Secondary)    9310492264288
