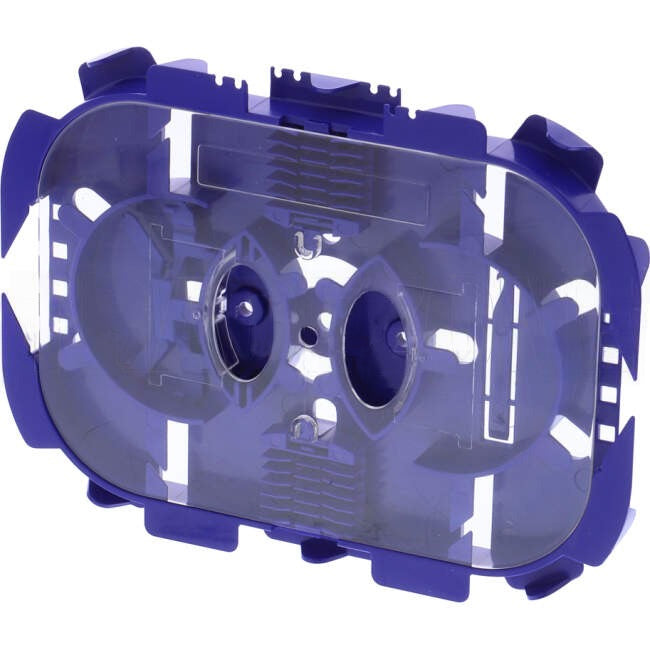

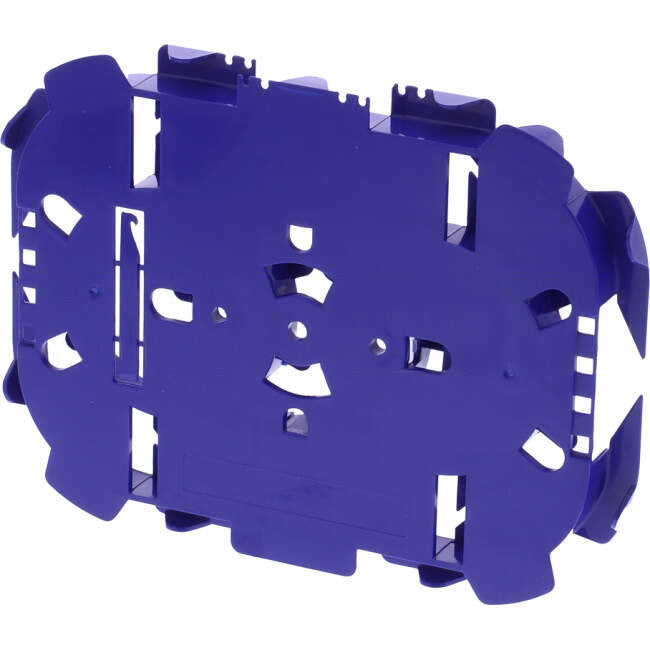

Molex 24 Fibre Universal Splice Tray With Cable Management Suitable For 1RU Multi-Function Fibre Enclosure

The 24 Fibre Splice Tray with integrated fiber management and external fiber management and pivotal splice holding arrangements, allows the installation of 24 optical fibers without the need to fit additional fiber management. This makes it ideal for fitting into small wall boxes and enclosures or for any installation requiring fibre. The tray is capable of holding up to 24 x 900m fibers with heat shrink splice protectors.

• External fiber cable management allows for easy storage of excess fiber
• Allows for multi-directional routing of entry and exit fibers, allowing the tray to be mounted vertically or horizontally
• Maintains 30mm bend radius, ideal for 250m or 900m fiber
• Internal cable management allowsfor multiple fiber routing options including cross over
• Pivoting splice holders allow uninterrupted control of fiber during splicing
• Built-in fibre pick can be used to withdraw individual fibers
• Will hold up to 24 heat shrink style splice protectors
• Tray is stackable with supplied tray hinge, which also allows for easy access
• Tray comes with a clip in transparent lid Cable ties point to secure fiber on entry and exit
• Mountable via centre hole, DIN style

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Molex
• Part Number -AFR-00470
• Also Known As internal splice tray

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.1720
• Length Packaging (mm) 180
• Height Packaging (mm) 40
• Width Packaging (mm) 150
• Barcode 2000100830574
• Barcode (Secondary) 0180600217
• Barcode (Tertiary) afr-00470
