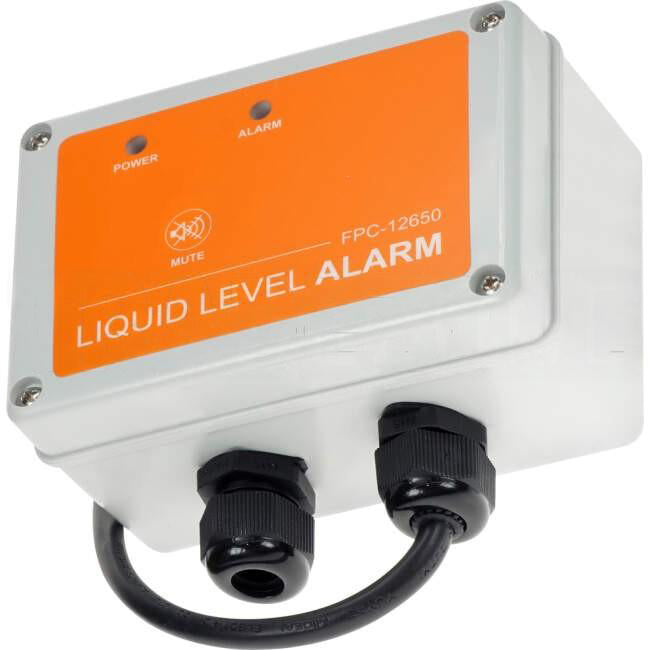

Matelec Standard Water Level Alarm IP44

FPC-12650

• Enclosure:
• IP54 rated, poycarbonate enclosure
• Protection:
• Low voltage control and input circuitry
• Control & interface:
• Audible (buzzer) alarm
• Level alarm keypad interface:
• Indicator lights for power on, level alarm
• Alarm mute/reset/test button
• Level alarm PCB control module
• Inputs:
• Single phase (230Vac) power supply
• Digital 12Vdc input for float switch or conductivity probes
• Outputs:
• BMS volt free output for common fault (NO & NC)
• Included with panel:

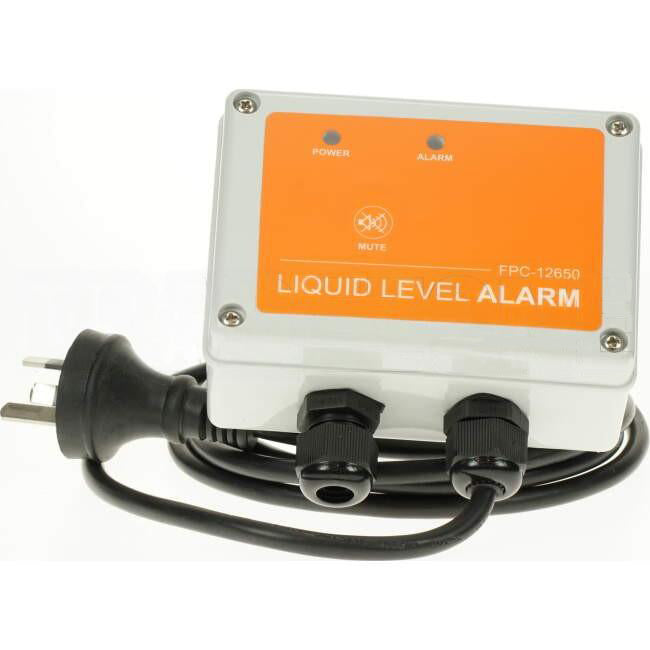

• 10 Amp 3 pin 1m power supply lead (230Vac)

Function Features

• Level alarm - Provides warning indication and alarm when a water storage tank is empty or full
• Auto-silencing alarm - If not muted, the buzzer will silence after 5 minutes, then sound briefly every 5 minutes (this feature can be disabled if a continuous alarm is required)

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Matelec
• Part Number - FPC-12650

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.7000
• Length (mm) 125
• Height (mm) 60
• Width (mm) 90
• Length Packaging (mm) 175
• Height Packaging (mm) 130
• Width Packaging (mm) 180
• Barcode 2000100113646
