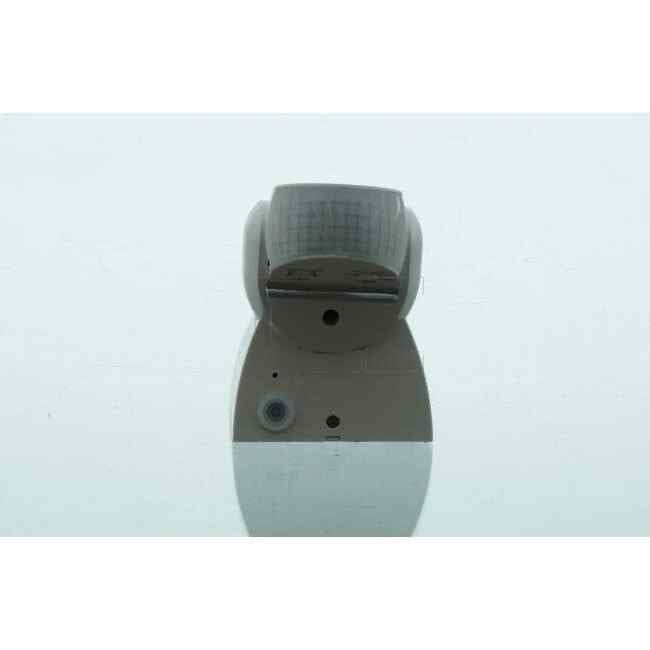

Matelec Cobra 180 Degree PIR Motion Sensor IP65

FMS-10000

• Sleek modern design
• Fixings supplied
• 5 year warranty

Specifications

• Mounting:?ÿWall
• Weatherproof rating:?ÿIP65, exterior
• Detection angle:?ÿ180?ø
• Detection range:?ÿUp to 12 metres
• Switching capacity:?ÿ300W (LED), 300W (fluorescent), 1200W (incandescent)
• Min LED load:?ÿ1W
• Manual override:?ÿYes
• Adjustments:?ÿTime & lux
• Time delay:?ÿ10 sec - 15 mins
• Lux adjustment:?ÿDawn to dusk (3-2000lux)
• Voltage:?ÿ220 - 240 Vac 50Hz
• Colour:?ÿWhite
• Detection speed:?ÿ0.6 - 1.5m/s
• Power consumption:?ÿ0.5W
• Operating temperature:?ÿ-20 to 40 ?§C
• Sensing adjustment:?ÿVertical and horizontal
• Certification:?ÿCE, RoHS, SAA

Warranty Information (From Install)

• Commercial Use 5 Years
• Domestic Use 5 Years
• Warranty Method Return to All Led Direct
• Warranty Period 5 Years

Attributes

• Brand Matelec
• Part Number - FMS-10000
• Colour White
• IP Rating IP65
• Sensor Degrees 180 Degrees
• Sensor Detection Range 12 Metres

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.2104
• Length Packaging (mm) 82
• Height Packaging (mm) 130
• Width Packaging (mm) 70
• Barcode 2000100207413
• Barcode (Secondary) 9338999002769
• Barcode (Tertiary) 190849338999002769
