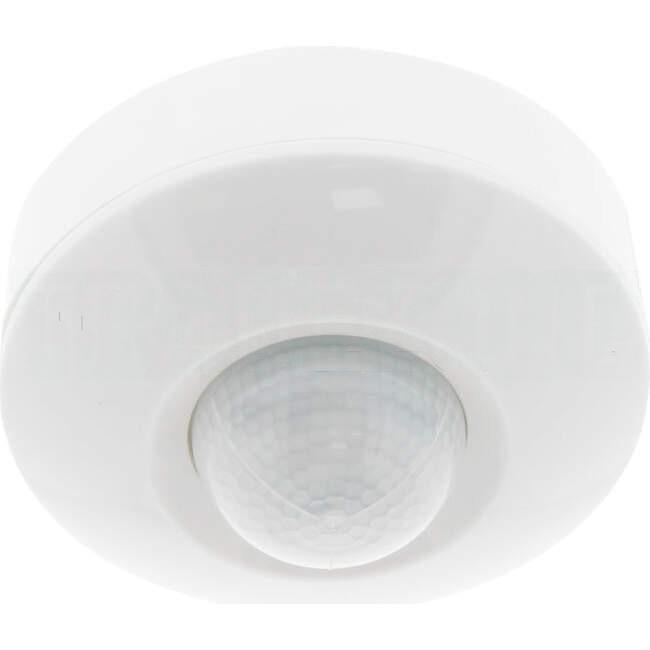

Matelec 360 Degree Surface or Flush Mounted Ceiling PIR Movement Sensor IP20 With 22 Metre Detection Range White

FMS-12080

• Triple PIR for maximum detection
• Occupancy feature - High and low sensing zones
• Enlarged cable entry for easy wiring
• Easy access to setting controls under front cover
• Stainless steel fixings supplied
• 3 year warranty

Specifications

• Mounting: Flush/recess and surface ceiling, all in one
• Weatherproof rating: IP44 (surface) or IP20 (flush/recess)
• Detection angle: 360°
• Detection range: Up to 22 metres
• Switching capacity: 200W (LED), 600W (fluorescent), 2000W (incandescent)
• Min LED load: 1W
• Manual override: No
• Adjustments: Time, lux and sensitivity
• Time delay: 10 sec - 40 mins
• Lux adjustment: Dawn to dusk (2-2000lux)
• Voltage: 220 - 240 Vac 50Hz
• Colour: White
• Dimensions: 105mm Ø x 55mm (H)
• Cut-out hole: 80mm Ø
• Certification: SAA

Warranty Information (From Install)

• Commercial Use 5 Years
• Domestic Use 5 Years
• Warranty Method Return to All Led Direct
• Warranty Period 5 Years

Attributes

• Brand Matelec
• Part Number - FMS-12080
• Colour White
• IP Rating IP20
• Sensor Degrees 360 Degrees
• Sensor Detection Range 22 Metres

Shipping Information

• Freight Levy - Freight Free on LED Couriers for orders over $500
• Weight (kg) - 0.2660
• Height (mm) - 55
• Width (mm) - 105
• Length Packaging (mm) - 110
• Height Packaging (mm) - 115
• Width Packaging (mm) - 68
• Barcode - 2000100113516
• Barcode (Secondary) - 9414861167177
• Barcode (Tertiary) - 9338999002172
