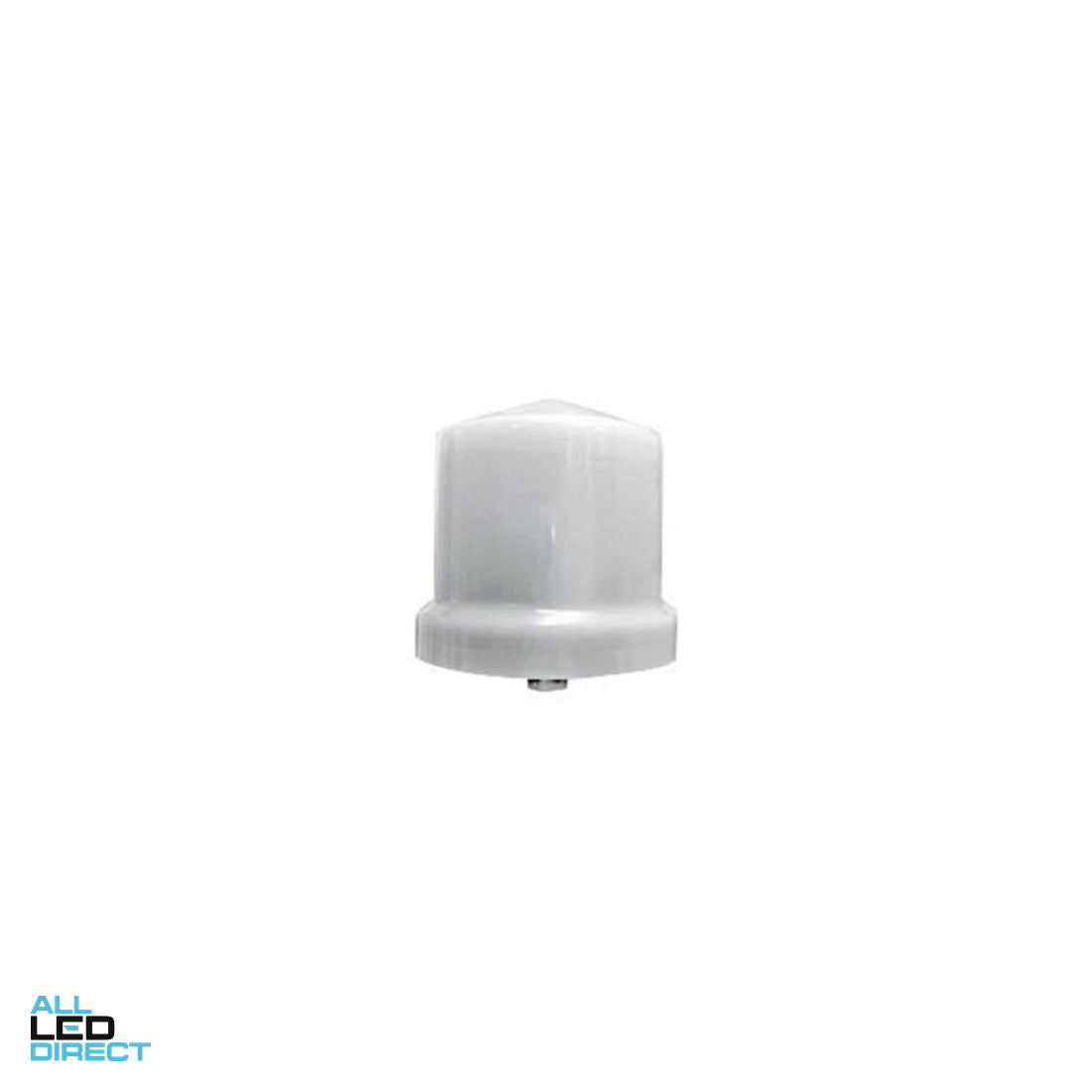

Matelec 15 Amp IP65 LS20N PE Cell

FSW-12213

• Unique N/C fail on circuitry
• Heavy duty design - Ideal for street lighting
• Designed to NEMA spec
• 1 year warranty
• Specifications

Specifications

• Materials: Lens - UV stable acrylic
• Weatherproof rating: IP56
• Switch rating: 15 Amps
• Voltage rating: 200 - 250V
• Frequency: 50/60Hz
• Rated current:
• Resistive - 15 Amps
• Inductive - 7 Amps
• Switching cycles on resistive load: > 200 000
• Volt drop after 1000c at 1800VA load: < 100mV
• Light intensity for switch ON: 60 Lux
• Light intensity for switch OFF: 90 Lux

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Matelec
• Part Number
• FSW-12213
• Amperage Range 15 Amp

Shipping Information

• Freight Levy - Freight Free on LED Couriers for orders over $500
• Weight (kg) - 0.1125
• Height (mm) - 60
• Width (mm) - 76
• Length Packaging (mm) - 80
• Height Packaging (mm) - 60
• Width Packaging (mm) - 60
• Barcode - 9338999002189
