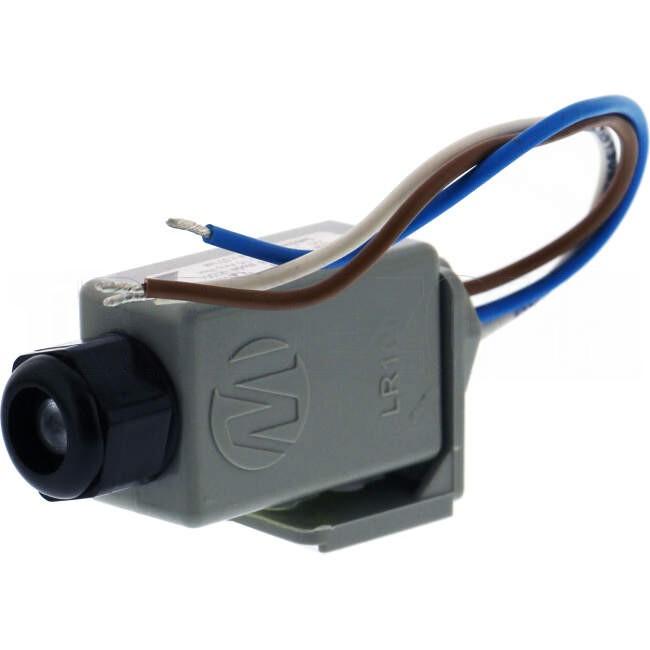

Matelec 15 Amp IP65 LR100 PE Cell

FSW-12218

• Unique N/C ‘fail on’ circuitry
• Designed for recess mounting, eg - Inside light fittings
• 1 year warranty
• Specifications

Specifications

• Weatherproof rating: IP54
• Switch rating: 15 Amps
• Voltage rating: 200 - 250V
• Frequency: 50Hz
• Rated current:
• Resistive - 15 Amps
• Inductive - 7 Amps
• Switching cycles on resistive load: > 200 000
• Volt drop after 1000c at 1800VA load: < 100mV
• Light intensity for switch ON: 60 Lux
• Light intensity for switch OFF: 90 Lux
• Cut out hole: 20mm

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Matelec
• Part Number
• FSW-12218
• Amperage Range 15 Amp

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.0800
• Height (mm) 37
• Width (mm) 37
• Length Packaging (mm) 120
• Height Packaging (mm) 30
• Width Packaging (mm) 70
• Barcode 9338999002233
• Barcode (Secondary) 2000100113790
