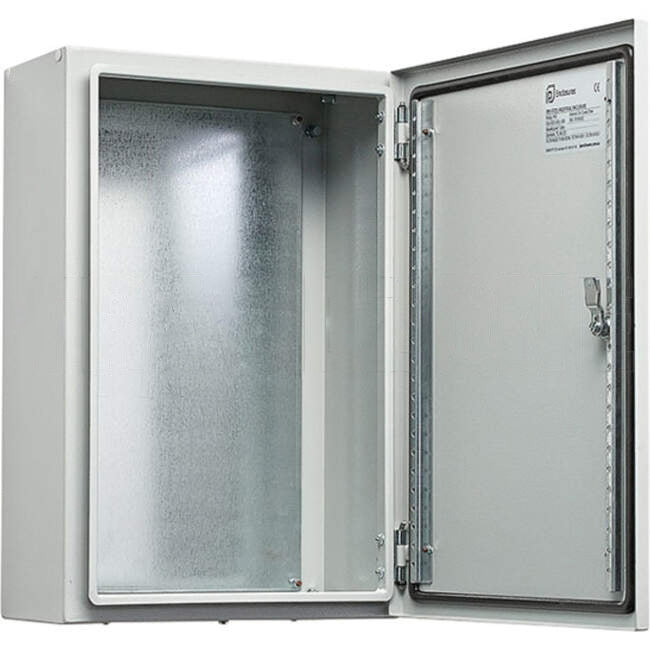

IP IP66 Enclosures 400mm W x 600mm H x 250mm D Galvanised Steel IP66 Enclosure Grey

IP IP66 Enclosures 400mm W x 600mm H x 250mm D Galvanised Steel IP66 Enclosure Grey

Regular price $0.00 AUD
Regular price $0.00 AUD Sale price $0.00 AUD
Sale Sold out
Tax included.

"

IP Enclosures S1 Range of steel electrical enclosures are suitable for general industrial applications.

Protection: Complies with IP66 IK10, NEMA 4. (Independent accredited test laboratory)

Standard: IEC/EN/AS62208, IEC/EN/AS60529, (IEC/EN/AS61439 Compliant)

Material:

- Body: 1.2-1.5mm galvanised steel sheet

- Gland Plate: 1.5mm galvanised steel sheet

- Door: 1.5mm galvanised steel sheet

- Device Mounting Plate: 1.5mm galvanised steel sheet

- Seal: Polyurethane

Body: The robust monoblock body is fabricated using galvanised steel sheet (1.2mm-1.5mm). Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounts and accessory fasteners to eliminate drilling and retain IP rating. Integral device plate mounts and M6 earth stud is provided.

Single Door: The robust surface mounted door is fabricated using 1.5mm galvanised steel sheet and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains integral cable management rail studs, M6 earth stud.

Seal: A high quality machine-applied full perimeter Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life.

Lock: Steel 3mm double bit insert quarter turn lock & key.

Device Mounting Plate: The device mounting plate is fabricated using 1.5mm galvanised steel sheet, pressed to provide additional strength and supplied pre-fitted into enclosure as standard.

Gland Plate: Gland plates are provided with gaskets and fasteners.

Surface Treatment: UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. Colour RAL7035

"

Warranty Information (From Install)

  • Commercial Use 1 Year
  • Domestic Use 1 Year
  • Warranty Method Return to All Led Direct
  • Warranty Period 1 Year

Attributes

  • Brand IP Enclosures
  • Part Number - IP-604025
  • Colour Grey
  • Enclosure Depth 250mm
  • Enclosure Height 600mm
  • Enclosure Width 400mm
  • IP Rating IP66 IK10
  • Material Powdercoated Galvanised Steel

Shipping Information

  • Freight Levy Freight Free on LED Couriers for orders over $500
  • Weight (kg) 16.0000
  • Length (mm) 400
  • Height (mm) 600
  • Width (mm) 250
  • Length Packaging (mm) 420
  • Height Packaging (mm) 630
  • Width Packaging (mm) 270
  • Barcode 2000100352038
