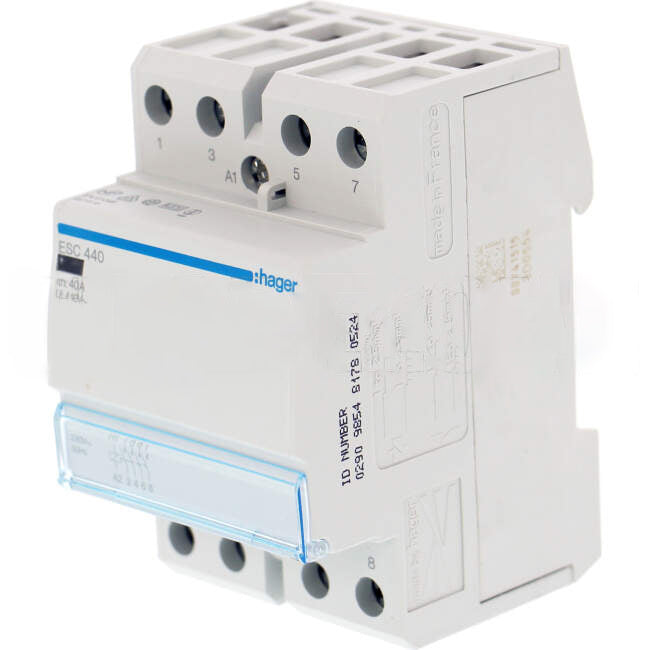

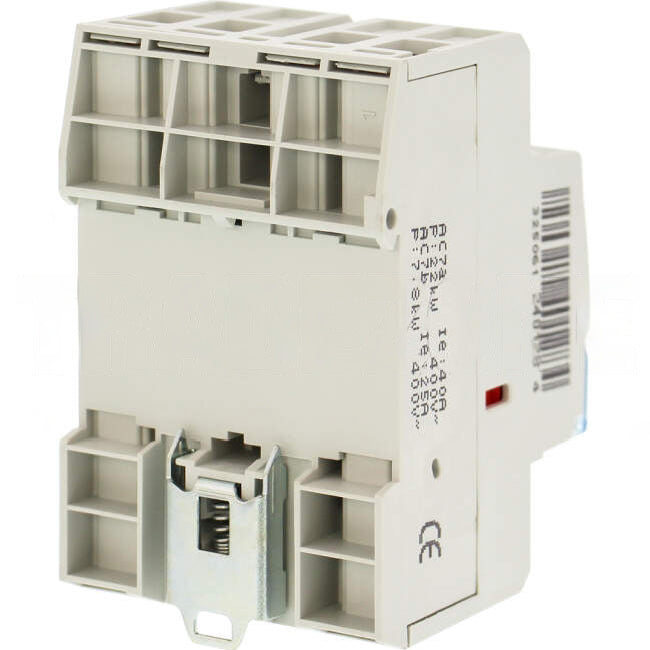

Hager 40 Amp 4 Pole Contactor With 230 Volt AC Coil 4 x N/O Auxilary Contacts

Hager 40 Amp 4 Pole Contactor With 230 Volt AC Coil 4 x N/O Auxilary Contacts

$152.44 AUD
$152.44 AUD $152.44 AUD
Sale Sold out
Tax included.
Electrical
  • Current rating - (AC1/AC7a) - 25A, 40A, 63A
  • Voltage rating - 230/400 V AC
  • 1-3 pole
Mechanical
  • Number of operations - 1,000 000
  • 1-2 module connection capacity: Rigid conductor - 10mm2 max / Flexible conductor - 6mm2 max
  • 3 module connection capacity:
  • Rigid conductor - 25mm2 max
  • Flexible conductor - 16mm2 max
Accessories
  • Auxiliary contact - (1NO + 1NC) ESC080
  • Heath dissipation insert LZ060

Compliance to IEC 61095

Warranty Information (From Install)

  • Commercial Use 2 Years
  • Domestic Use 2 Years
  • Warranty Method Return to All Led Direct
  • Warranty Period 2 Years

Attributes

  • Brand Hager
  • Part Number - ESC440
  • Also Known As HAGESC440
  • Amperage Range 40 Amp (AC1)
  • Contact Configuration 4 x NO
  • Poles 4 Pole
  • Voltage Range 240 Volts
  • Voltage Type AC

Shipping Information

  • Freight Levy Freight Free on LED Couriers for orders over $500
  • Weight (kg) 0.3560
  • Length (mm) 65
  • Height (mm) 85
  • Width (mm) 54
  • Length Packaging (mm) 95
  • Height Packaging (mm) 80
  • Width Packaging (mm) 55
  • Barcode 3250612401284
