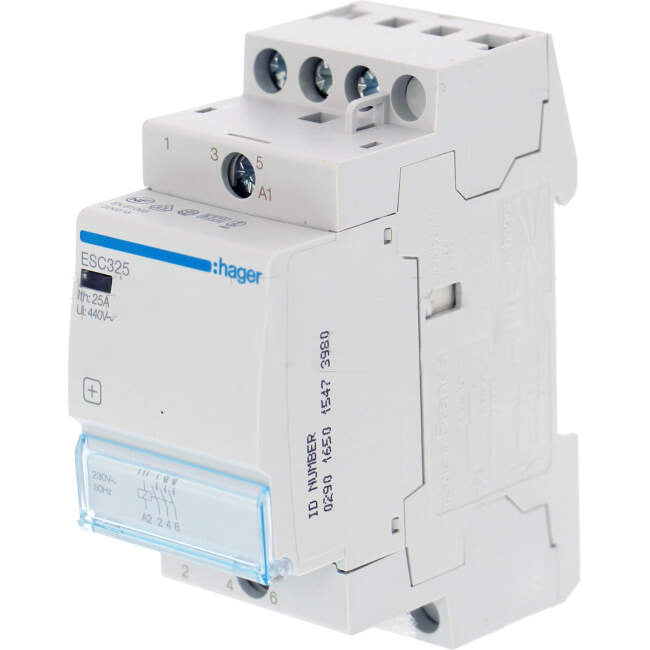

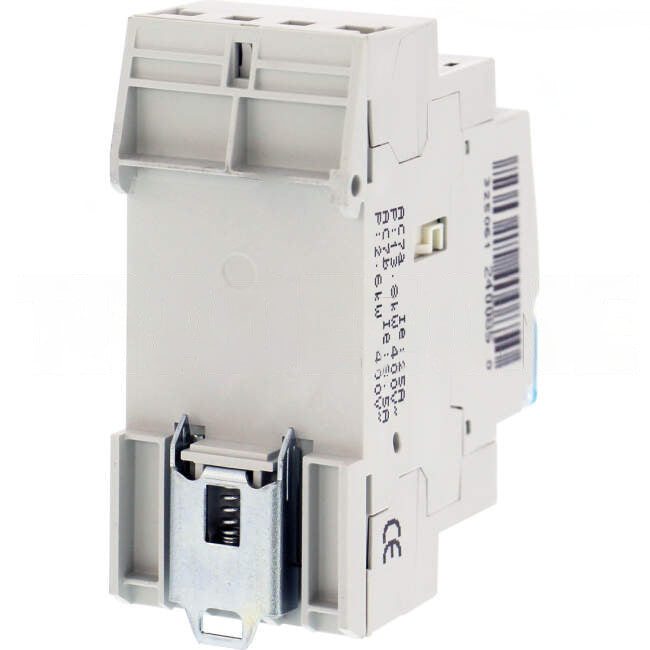

Hager 25 Amp 3 Pole Contactor With 230 Volt AC Coil & 3 x N/O Auxiliary Contacts

• Current rating - (AC1/AC7a) - 25A, 40A, 63A
• Voltage rating - 230/400 V AC
• 1-3 pole

• Number of operations - 1,000 000
• 1-2 module connection capacity: Rigid conductor - 10mm2 max / Flexible conductor - 6mm2 max
• 3 module connection capacity:
• Rigid conductor - 25mm2 max
• Flexible conductor - 16mm2 max

• Auxiliary contact - (1NO + 1NC) ESC080
• Heath dissipation insert LZ060

Compliance to IEC 61095

Warranty Information (From Install)

• Commercial Use 2 Years
• Domestic Use 2 Years
• Warranty Method Return to All Led Direct
• Warranty Period 2 Years

Attributes

• Brand Hager
• Part Number - ESC325
• Also Known As HAGESC325
• Amperage Range 25 Amp (AC1)
• Contact Configuration 3 x N/O
• Poles 3 Pole
• Voltage Range 240 Volts
• Voltage Type AC

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.2070
• Length (mm) 65
• Height (mm) 83
• Width (mm) 36
• Length Packaging (mm) 100
• Height Packaging (mm) 79
• Width Packaging (mm) 40
• Barcode 3250612400850
