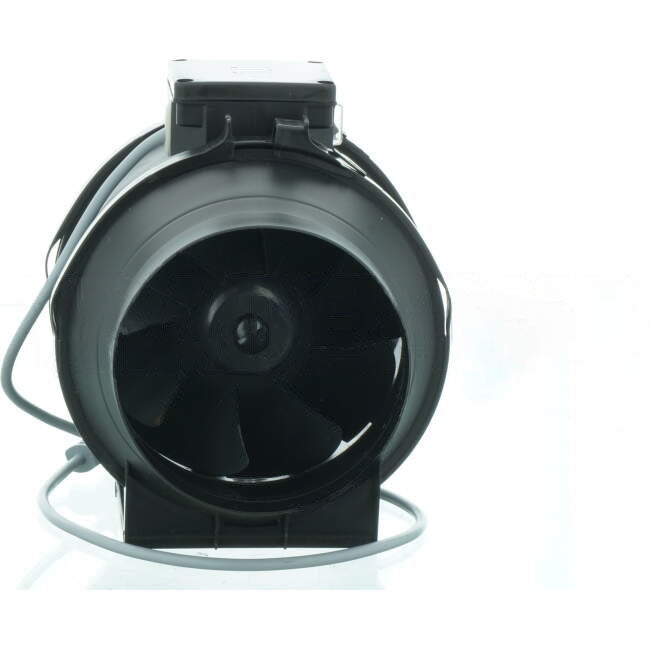

Fantech Inline Fan With 2 Speed Switch Suitable For 150mm Duct

Features

The ProVent Series is a low cost ducted in-line fan that is designed specifically for exhaust and supply applications. They can be also be used as part of a room to room hot and cold air transfer systems. Available in 100,125,150 and 200mm. 150 and 200mm also available with run-on timer.

Features
Standard models include built-in 240V plug and lead which helps make installation easier
150mm and 200mm standard models include convenient 2-speed switch
Timer models includes 1 to 30 minute run-on timer
High performance Mixed-Flow Impeller
Integrated foot makes fan mounting easier
Fan body can be easily removed easily without disturbing connected ductwork

Typical Applications
Toilets, ensuites, bathrooms, washrooms and laundries
Construction
Casings are made of reinforced injection moulded polypropelene plastic. Impellers are of injection moulded plastic and of mixed-flow design.

Motors
Type - RIL-100 and RIL-125: 2-speed, shaded pole.
RIL-150SW and RIL-200SW: 2-speed, squirrel cage induction.
RIL-150T and RIL-200T: Single-speed, squirrel cage induction.
Electricity supply - 220-240V, single-phase, 50Hz.
Bearings - sleeve for models RIL-100 and RIL-125, and ball for all other models.
Speed-controllable using VA type speed controller in high speed only. Not applicable to models with run-on timer.

Internal Thermal Protection
By fuse for models RIL-100 and RIL-125 and for all other models manual-reset thermal overload protection device in accordance with mandatory requirement for in-duct fans AS/NZS60335-2-80:2004

Testing
Air flow to ISO5801:1997, Noise to BS848:Part 2, 1985

Special Note
Avoid the use of spring-loaded backactive dampers, extensive lengths of duct and air valves with the RIL-100 and RIL-125 models. Please note that timer models don

Warranty Information (From Install)

• Commercial Use 2 Years
• Domestic Use 2 Years
• Warranty Method Return to All Led Direct
• Warranty Period 2 Years

Attributes

• Brand Fantech
• Part Number - RIL-150SW
• Air Delivery Cubic Metres (Average) 501-600
• Ball Bearing Motor Yes
• Duct Width 150mm
• IP Rating IP44
• Noise Level Db (Average) 41-50
• Sold As Kit No

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 3.1300
• Length Packaging (mm) 310
• Height Packaging (mm) 370
• Width Packaging (mm) 260
• Barcode 8413893612298
• Barcode (Secondary) 84138936122988413893612298
