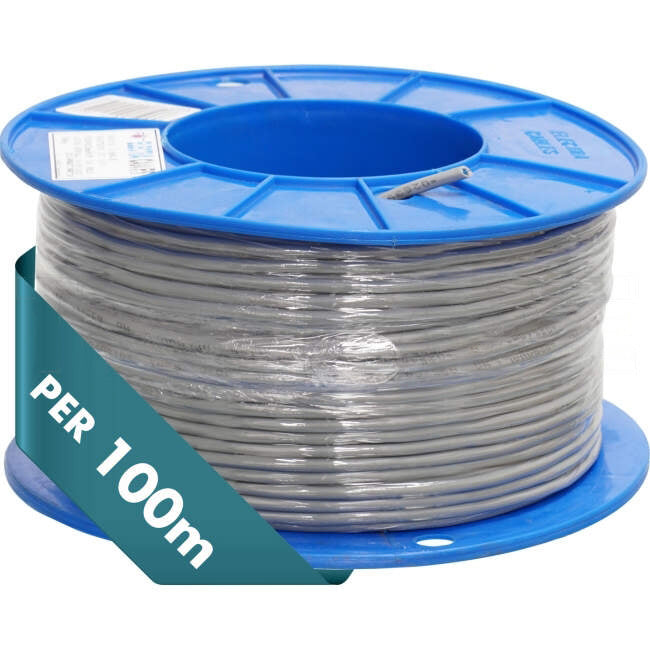

Electra 7/0.2 1 Pair Overall Shielded Multicore Cable 100 Metre Drum

Application: Internal and external inter-connections of electronic apparatus such as computer, intercoms, telemetering, signaling and alarm systems.
Conductor: Plain annealed copper wire.
Insulation: PVC V90HT or V75
Screen: Aluminum tape screen, polyester mylar tape lapping and 7/0.20mm tinned copper drain wire.
Sheath: PVC 5V-90 or 4V-75
Voltage: These cables are run with a 240V radial thickness sheath and must not be connected to mains power supplies.
Standards: AS1125 (conductor) AS/NZS 3808(PVC)
Austel Approval: A95/CA/0217; EAS7201P to EAS7212P, EAS7212P+1

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Electra Cables
• Part Number - EAS7201P-100
• Cable Conductor Material Stranded Copper
• Cable Drum Length 100 Metres
• Cable Insulation & Sheath Material PVC
• Cable Pairs 1
• Cable Voltage 240 Volts
• Earthing No
• Number of Cores 1
• Security Cable Size 0.2mm

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 2.1000
• Length (mm) 205
• Height (mm) 110
• Width (mm) 205
• Length Packaging (mm) 205
• Height Packaging (mm) 110
• Width Packaging (mm) 205
• Barcode 2000100241127
• Barcode (Secondary) 2000200241126
• Barcode (Tertiary) 311442000100241127
