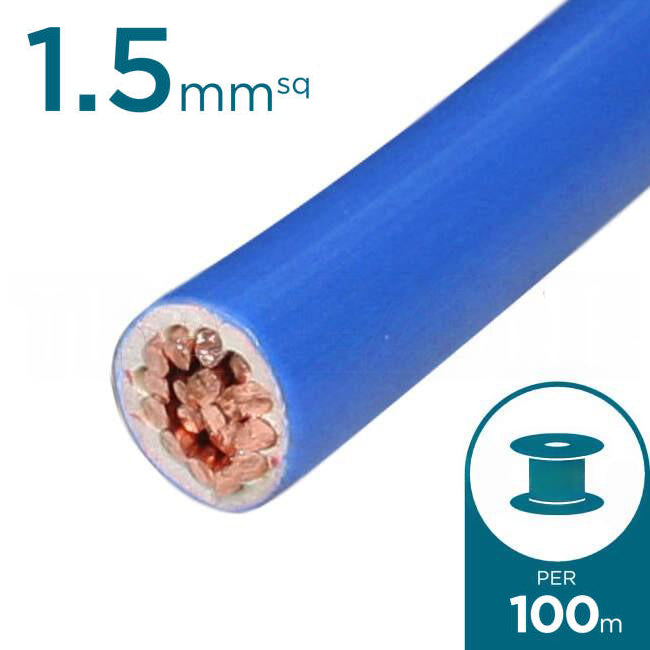

Electra 1.5mm Single Core Flexible Cable V90HT Blue 100 Metre Drum

• Application: Enclosed wiring where 0.6/1kV insulation is required at higher operating temperature in control panels, and electrical appliances. Suitable for swing out panels.
• Conductor: Tinned copper wire
• Insulation: PVC V90HT
• Voltage: 0.6/1 kV
• Standards: AS/NZS3808, AS/NZS 3191, RoHS to IEC6231:2008 & 2011/65/EU
• Normal Operating Temperature: 105°C

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Electra Cables
• Part Number - F1015VT-100BLU
• Also Known As 1c 1 Core
• Cable Conductor Material Tinned Copper Wire
• Cable Drum Length 100 Metres
• Cable Insulation & Sheath Material PVC
• Cable Sheath Colour Blue
• Cable Size mm 1.5mm
• Cable Voltage 250/440 Volts
• Number of Cores 1
• Ordinary or Heavy Duty Ordinary Duty

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 2.3000
• Length (mm) 205
• Height (mm) 65
• Width (mm) 205
• Length Packaging (mm) 205
• Height Packaging (mm) 65
• Width Packaging (mm) 205
• Barcode 2000100331934
