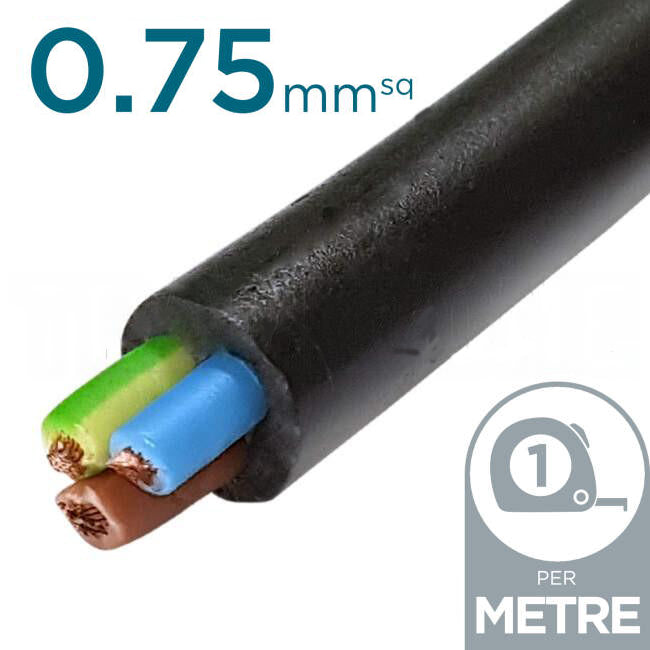

Electra 0.75mm 3 Core Ordinary Duty Flex Cable Per Metre

**** CABLE CUTS ARE NON RETURNABLE ****

Application: 2 core ordinary duty cords can be used in dry situations for double insulated applications and luminaries such as hand held lamps, sewing machines and office machines, where the cord may be subject to some mechanical stress but not rough usage. 3 core ordinary duty cords can be used for extension leads and for domestic appliances. 4 and 5 ordinary duty cords are suitable for industrial and office equipment requiring three phase supply and earth connection.
Conductor: Plain annealed copper (AS/NZS 1125)
Insulation: PVC V90 (AS/NZS 3808)
Sheath: PVC V90 (AS/NZS 3808)
Voltage: 250/440V
Standards: AS/NZS 3191
Normal Operating Temperature: 105°C
Sheath Colour: Up to 4sqmm, Black, Brown, Blue, Grey, Orange, Violet, Red, White, Pink, Green/Yellow

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Electra Cables
• Part Number - F3075-100BLK
• Also Known As 3c Triple Core
• Cable Conductor Material Annealed Copper
• Cable Drum Length Per Metre
• Cable Insulation & Sheath Material PVC
• Cable Sheath Colour Black
• Cable Size mm 0.75mm
• Cable Voltage 250/440 Volts
• Number of Cores 3
• Ordinary or Heavy Duty Ordinary Duty

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.1000
• Length Packaging (mm) 229
• Height Packaging (mm) 173
• Width Packaging (mm) 229
• Barcode 9318229013215
