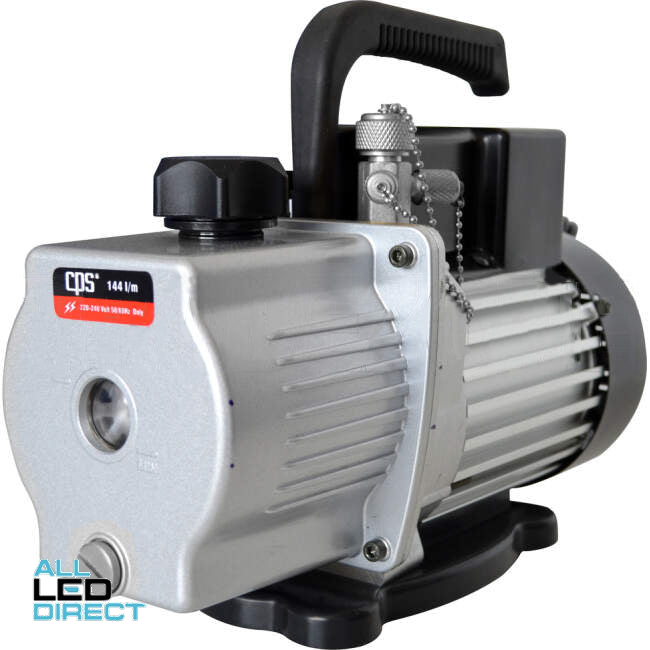

CPS VPS SERIES Two Stage Spark Proof Vacuum Pump

CPS introduces another addition to the Pro-Set vacuum pump line-up with the VPS series. An efficient, lightweight and reliable vacuum pump, that meets ANSI 12:12.01 Ignition Proof standards. For use on refrigeration systems utilizing Class A1 (nontoxic, nonflammable), Class A2 (nontoxic, low flammability), and Ammonia (NH3). Air cooled, thermally protected motors encased in a durable aluminum housing. Oil filled rotary vacuum pump cartridge construction. Combination oil fill/exhaust port utilizes CPS exclusive oil mist free exhaust cap. Large double sealed oil sight glass. Sealed start relay. Steel inlet port with multiple intake sizes (1/4, 3/8 & 1/2 SAE). Ignition proof ON-OFF switch. Rubber lined handle, skid resistant rubber base. Gas ballast valve for deeper vacuum. UL listed.

Key Features

• Designed and tested to meet ANSI 12:12.01 Ignition Proof standards
• For use on refrigeration systems utilizing Class A1 (nontoxic, nonflammable), Class A2 (nontoxic, low flammability), and Ammonia (NH3)
• Air cooled, thermally protected motors encased in a durable aluminum housing
• Oil filled rotary vacuum pump cartridge construction
• Combination oil fill/exhaust port utilizes CPS exclusive oil mist free exhaust cap
• Large double sealed oil sight glass
• Sealed start relay
• Steel inlet port with multiple intake sizes (1/4, 3/8 & 1/2 SAE)
• Ignition proof ON-OFF switch
• Rubber lined handle, skid resistant rubber base
• Gas ballast valve for deeper vacuum

Main Benefits

• Reduces onsite labor costs by 15% through tool-less installation
• Provides high-quality materials and construction
• Meets Australian pain points (humidity resistance, voltage fluctuation protection)
• Offers fast shipping and exceptional service




• Warranty Information

  Warranty Method  Return

  Commercial Use   1 Years

  Domestic Use   1 Year

  Warranty Period  1 Year




  Attributes

  Brand  CPS
  Part Number  VPS6DA

   Sub Category  Vacuum Pumps




  Shipping Information

  Freight Levy   Freight Free on TZ Couriers for orders over $500

  Weight (kg)    10.2000

  Length (mm)    14
  Height (mm)    25

  Width (mm)    33

  Length Packaging (mm)    33
  Height Packaging (mm)    25

  Width Packaging (mm)    14
