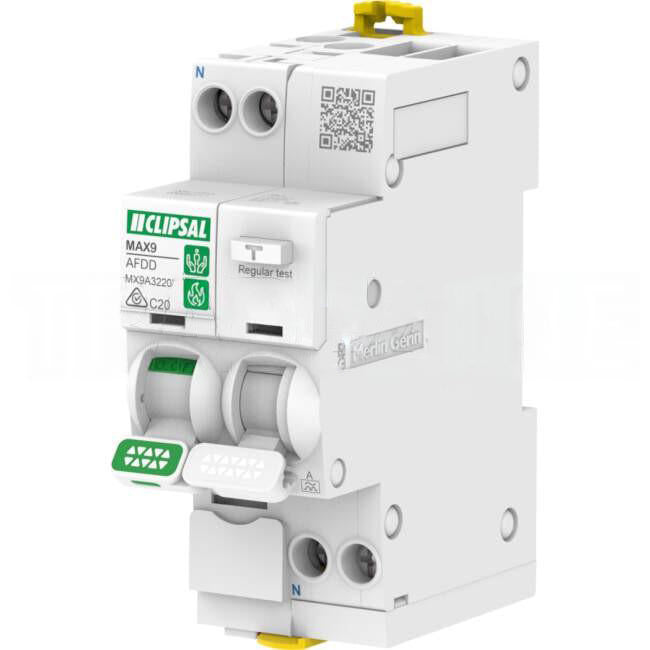

Clipsal MAX9 20 Amp Arc Fault Detection & Residual Current Device AFDD/RCBO C Curve 1 Pole + Neutral 30mA 6kA

This MAX9 product is an arc fault detection RCBO. It is a 1P+N circuit breaker with 1 protected pole, 20A In rated current at 30°C and C tripping curve. The operating frequency is 50Hz.

The earth leakage protection class is type A with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity goes up to 6000A at 240VAC conforming to IEC 61009 standard.

This MAX9 circuit breaker is compatible with TN-S, TT and IT earthing system. It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles.

It detects arc fault who comes from fire start and is constantly analyzing electric settings. It isolates involved circuit automatically before first flame appearance. It is particulary adapted for circuit protection where the fire start is the most important in domestic intallation (outdoors, rooms). It has a RCM quality lable.

The Ue rated operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. It has a Uimp rated impulse withstand voltage of 4kV. It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 4.

The dimensions are (W) 36mm x (H) 91mm x (D) 75mm. The product colour is white (RAL9003). The product weight is 237g. According to IEC 60529 standard, the degree of protection is IP20. The pollution degree is 2. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C.

This product is complies with EN/IEC 62606 standard.

Warranty Information (From Install)

• Commercial Use    7 Years
• Domestic Use
• Warranty Method    Return to All Led Direct
• Warranty Period    7 Years

Attributes

• Brand    Clipsal MAX9
• Part Number    - MX9A3220
• Also Known As    CLIMX9A3220

Shipping Information

• Freight Levy    Freight Free on LED Couriers for orders over $500
• Weight (kg)    0.2360
• Length (mm)    8
• Height (mm)    4
• Width (mm)    8
• Length Packaging (mm)    10
• Height Packaging (mm)    10
• Width Packaging (mm)    4
• Barcode    2000100862735
• Barcode (Secondary)    9311554813437
