Clipsal MAX9 100 Amp Top Feed Slim Comb Busbar 3 Pole + Neutral 15 Module With Accessories

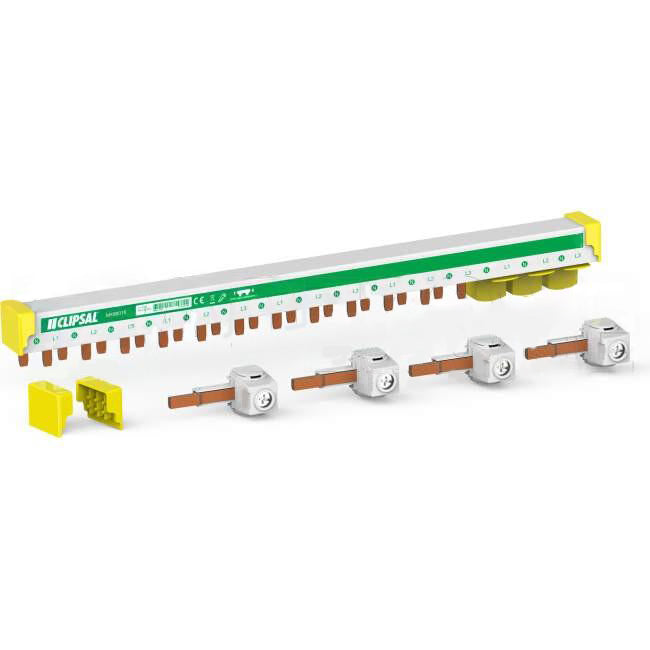

MAXBAR is slim type top feed comb busbar for row without incomer The rated current is 100A. It is 3P+N and 15 modules.

Comb busbar mounting mode is horizontal and cuttable. The provided equipements are connector, end-pieces and tooth covers.

It is dedicated to residential market. The Ue rated operational voltage is 230VAC or 415VAC. The Ui rated insulation voltage is 500V.

The dimensions are (W) 324mm x (H) 50mm x (D) 45mm.colour is white electric (RAL9003).

The comb busbar colour is white electric (RAL9003)

Warranty Information (From Install)

• Commercial Use    1 Year
• Domestic Use    1 Year
• Warranty Method    Return to All Led Direct
• Warranty Period    1 Year

Attributes

• Brand    Clipsal MAX9
• Part Number    - MX9B315
• Also Known As    CLIMX9B315
• Amperage Range    100 Amps
• Poles    3 Pole
