Clipsal MAX9 100 Amp Top Feed Slim Comb Busbar 1 Pole + Neutral 12 Module With Neutral Block & Accessories

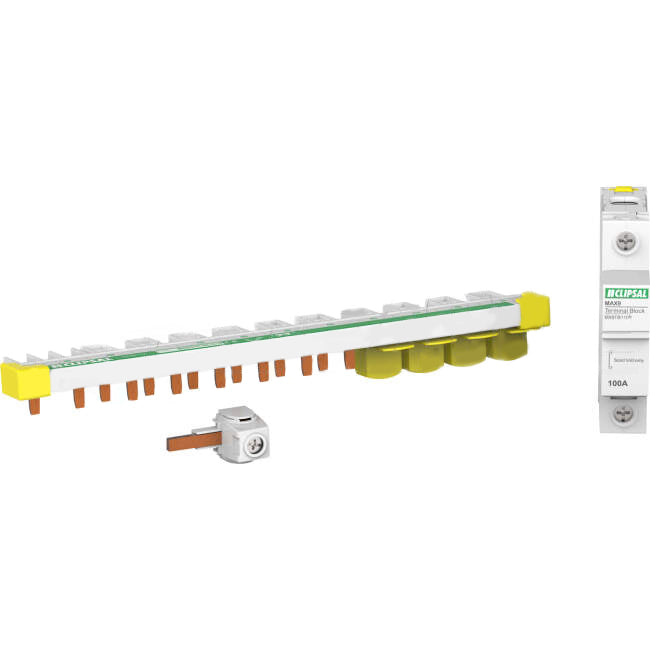

MAXBAR is slim type top feed comb busbar for row with incomer The rated current is 100A. It is 1P+N and 12 modules. Comb busbar mounting mode is horizontal and cuttable. The provided equipements are connector, neutral terminal block and tooth covers.

It is dedicated to residential market. The Ue rated operational voltage is 230VAC or 415VAC. The Ui rated insulation voltage is 500V. The dimensions are (W) 253mm x (H) 39.4mm x (D) 44.2mm.colour is white electric (RAL9003).

The comb busbar colour is white electric (RAL9003)

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Clipsal MAX9
• Part Number - MX9B112N
• Also Known As CLIMX9B112N
• Amperage Range 100 Amps
• Poles 1 Pole

Shipping Information

• Weight (kg) 0.2840
• Length (mm) 4
• Height (mm) 30
• Width (mm) 4
• Length Packaging (mm) 300
• Height Packaging (mm) 40
• Width Packaging (mm) 130
• Barcode 9311554814618
• Barcode (Secondary) 0119311554814615

Disclaimer

• Installation Requirements for Specific Products By purchasing items such as sharp tools, knives, or paint, you confirm that you have read and understood our Terms and Conditions regarding the proper installation of these products.
• All items that require electrical installation must be installed by a licensed electrician. You agree to comply with this requirement and ensure that such installations are carried out by qualified professionals.
• You must be over the age of 18 to purchase any sharp objects, knives, or items that may pose a safety risk. This is to ensure that you can legally and responsibly handle such products.
