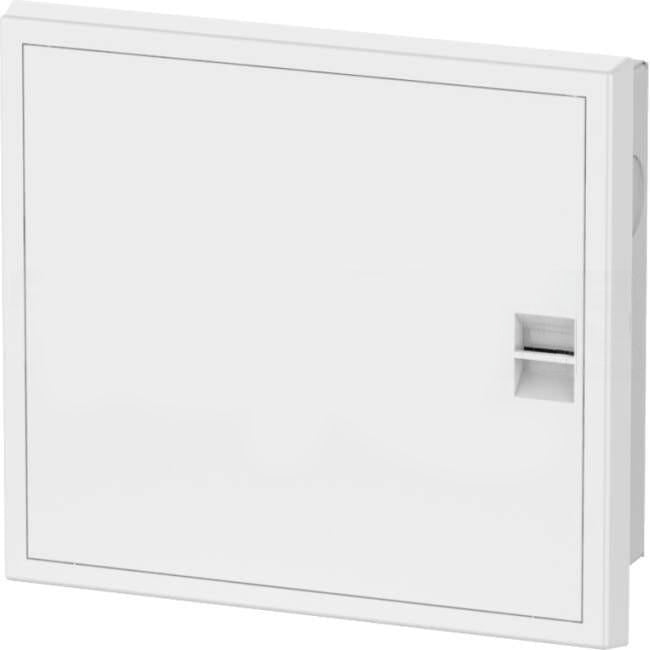

Clipsal MAX9 1 Row 11 Pole Plastic Surface Mounted Switchboard Plain Door

• MAX9 switchboard enclosure is flush mounted. The rated current is 100A. This switchboard is composed of 1 row of 11 modules of 18mm (11 modules total).
• It can accomodate all types of modular Clipsal devices. It has plain door with door opening on left side The provided equipements are earthing bar, neutral bar, circuit identification label and blanking plate.

• It is dedicated to residential market. The Ue rated operational voltage is 230VAC or 415VAC. The Ui rated insulation voltage is 500V.

• It can be mounted on DIN rail for modular installation. The degree of protection is IP30 in an enclosure.

• This switchboard comply with AS/NZS 61439-3 and supports compliance to AS/NZS 3000 standards.

• The switchboard colour is white electric (RAL9003)

• This switchboard is complies with AS/NZS 61439-3 and AS/NZS 3000 standards.


Warranty Information (From Install)

• Commercial Use    1 Year
• Domestic Use    1 Year
• Warranty Method    Return to All Led Direct
• Warranty Period    1 Year

Attributes

• Brand    Clipsal MAX9
• Part Number    - MX9E1111F
• Also Known As    Sub board panel board max 9 switchboard max9 switchboard CLIMX9E1111F
• Colour    White
• Door Hinge Direction    Side Hinge
• IP Rating    IP30
• Number Of Rows    1 Row
• Plain or Transparent Door    Plain
• Poles    11 Pole
• With Or Without Door    With Door

Shipping Information

• Freight Levy    Freight Free on LED Couriers for orders over $500
• Weight (kg)    2.8600
• Length (mm)    11
• Height (mm)    28
• Width (mm)    11
• Length Packaging (mm)    280
• Height Packaging (mm)    316
• Width Packaging (mm)    110
• Barcode    9311554814458
• Barcode (Secondary)    0119311554814455
