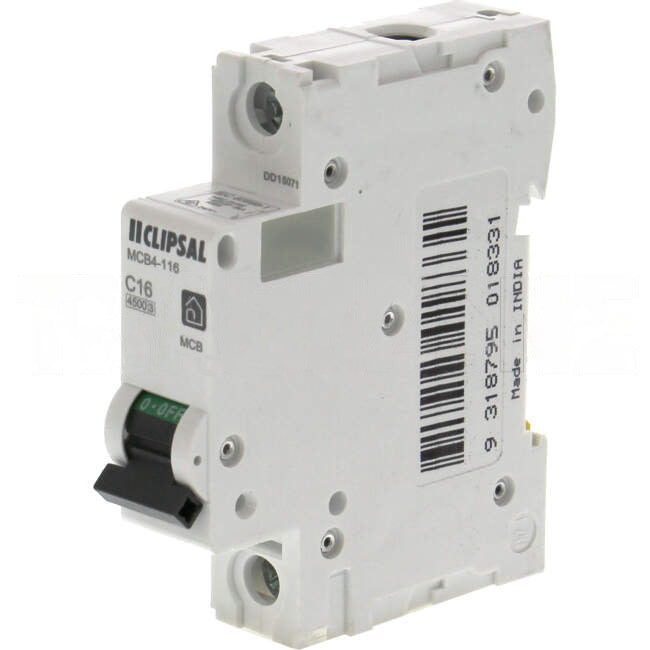

Clipsal 16 Amp Miniature Circuit Breaker MCB C Curve 1 Pole 4.5kA

Clipsal 16 Amp Din Rail Mount C Curve MCB 1 Pole 4.5kA

The 4.5kA breaking capacity of these MCBs makes them ideal for residential applications. This range has C-Curve characteristics, to suit most applications when connected with a backup (service) fuse, up to 100A, 6kA breaking capacity is achieved. Please refer to page 84 of the catalogue for tripping curves.

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand - Clipsal
• Part Number - MCB4-116
• Also Known As - CLIMCB4-116
• Amperage Range - 16 Amps
• Poles - 1 Pole
• Trip Current - 4.5 kA
• Trip Curve - C Curve
• Voltage - 240 Volts

Shipping Information

• Freight Levy - Freight Free on LED Couriers for orders over $500
• Weight (kg) - 0.1150
• Length Packaging (mm) - 78
• Height Packaging (mm) - 81
• Width Packaging (mm) - 18
• Barcode - 9318795018331
• Barcode (Secondary) - 9318795019697
• Barcode (Tertiary) - 19311554018334
