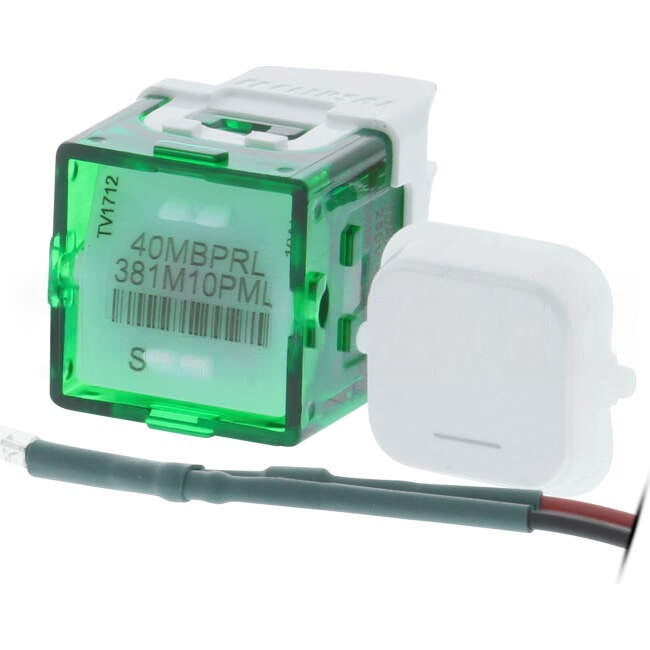

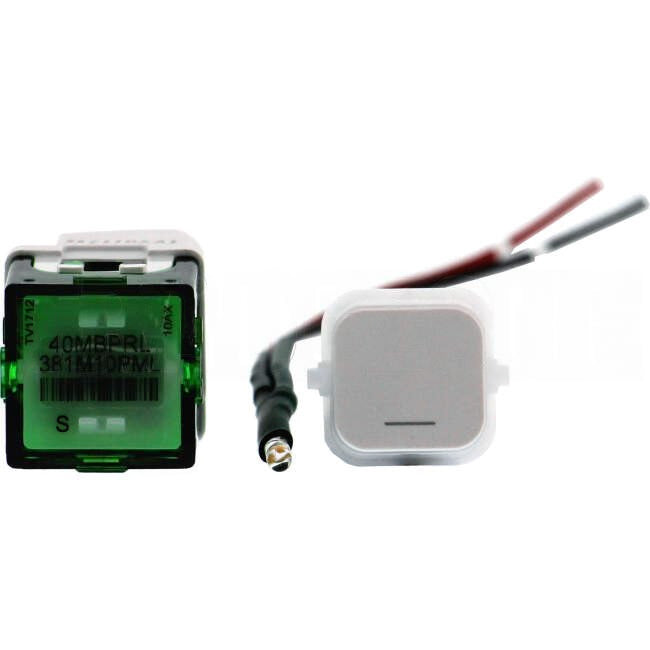

Clipsal 10 Amp ICONIC 2 Way Momentary Bell Press Switch Mech White

Depth 32 mm
Height 23 mm
Material Switch Housing - PC (polycarbonate)
Switch Housing - PA66
Rocker dolly - PC (polycarbonate)
Rocker dolly - ABS (acrylonitrile butadiene-styrene)
Rated current 10AX A
Surface treatment Untreated
Switch function 1/2way
Width 23 mm
Brand Name Clipsal Iconic
Product or component type Switch mechanism
Device mounting Locking bar
Device presentation Mechanism
Fixing mode Locking bar
Local signalling LED
Colour tint Vivid White
Surface finish Matt
Type of packing Polybag
Quantity per set Set of 20
Sale per indivisible quantity 1
Ambient air temperature for storage [0deg. - 60deg.] deg C
Dielectric strength 20000 V
Ambient air temperature for operation [0deg. - 45deg.] deg C
Relative humidity [10percent - 95percent] percent
Electrical durability 20000 cycles
Connections - terminals Screw terminals
Shape of screw head Philips No 2 (PH2)
square drive no 1 (SQ1)
Clamping connection capacity 1.5 mm2 - stranded
1.5 mm2 - flexible
1.5 mm2 - rigid
Wire stripping length 10mm mm
Product weight 0.016 kg
Standards AS/NZS 60669
Product certifications RCM
Actuator Rocker
[Ue] rated operational voltage 250V, AC, 50Hz
Load type Lighting
fluorescent lighting
inductive loads
Number of terminals 4
Device application Doorbells
control equipment
Additional information Momentary
Provided equipment Switch mechanism
rocker dolly
LED module
Marking Press
Light source LED
Current consumption 60 mW mA
Signalling colour Warm white
Condition of use Optional
locator
indicator

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Clipsal
• Part Number - 40MBPRL-VW
• Also Known As Mechanism Switch Mechanism Switching Mech Switching Mechs Switch Mechanisms Clipsal Iconic CLI40MBPRL-VW
• Amperage Range 10 Amps
• Colour White
• Engraved No
• Illuminated No
• Series Clipsal Iconic
• Single Or Double Pole Single Pole
• Switch Type Bell Press

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.0270
• Length (mm) 23
• Height (mm) 23
• Width (mm) 32
• Length Packaging (mm) 60
• Height Packaging (mm) 16
• Width Packaging (mm) 60
• Barcode 9311554786564
• Barcode (Secondary) 9311554790165
