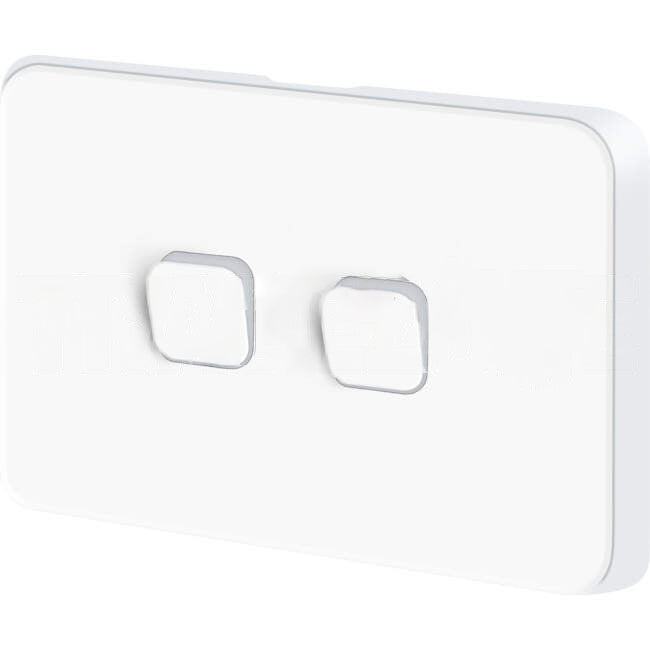

Clipsal 10 Amp 2 Gang ICONIC Horizontal Internal Rocker Switch Vivid White

Number of gangs 2
Rated current 10AX
M80 A
Surface treatment Untreated
Switch function 1/2way
Width 78 mm
Brand Name Clipsal Iconic
Product or component type Plate assembly
Device mounting Flush
Device presentation Switch plate assembly
Fixing mode Screw
Local signalling
Colour tint Vivid White
Surface finish Matt
Type of packing Polybag
Quantity per set Set of 20
Sale per indivisible quantity 1
Ambient air temperature for storage [0deg. - 60deg.] deg C
Dielectric strength 20000 V
Ambient air temperature for operation [0deg. - 45deg.] deg C
Relative humidity [10percent - 95percent] percent
Electrical durability 20000 cycles

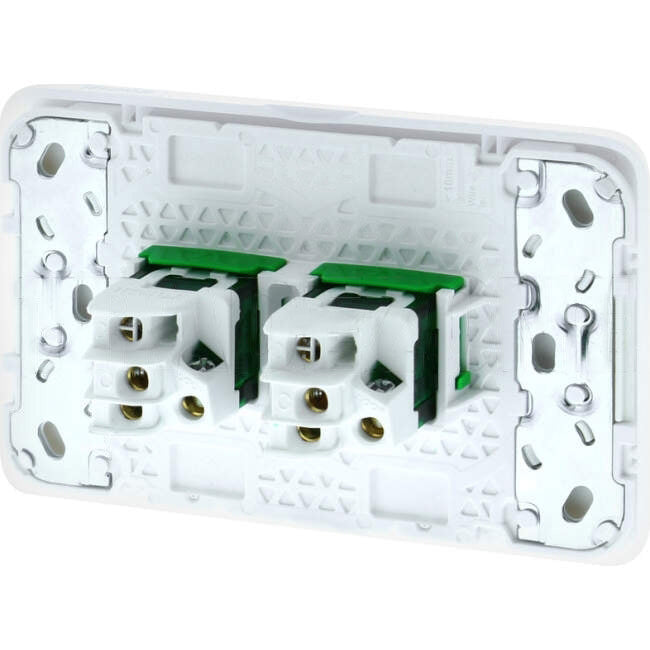

Connections - terminals Screw terminals
Shape of screw head Philips No 2 (PH2)
square drive no 1 (SQ1)
Clamping connection capacity 1.5 mm2 - stranded
1.5 mm2 - flexible
1.5 mm2 - rigid
Wire stripping length 10mm mm
Product weight 0.092 kg
Standards AS/NZS 60669
Product certifications RCM
IP degree of protection
Installation direction Horizontal
Actuator Rocker
[Ue] rated operational voltage 250V, AC, 50Hz
Load type Lighting
fluorescent lighting
inductive loads
Number of terminals 4
Device application Lighting
Additional information
Provided equipment Skin
gridplate
switch
mounting screws
Distance between centers 84mm mm
Number of rocker 2

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Clipsal
• Part Number - 3042HA-VW
• Also Known As Clipsal Iconic CLI3042HA-VW
• Amperage Range 10 Amps
• Colour Vivid White
• Grid Plate Size Slimline
• Number Of Switches 2
• Orientation Horizontal
• Series Clipsal Iconic
• Switch Type Rocker

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.1010
• Length (mm) 78
• Height (mm) 120
• Width (mm) 9
• Length Packaging (mm) 150
• Height Packaging (mm) 77
• Width Packaging (mm) 40
• Barcode 9311554785864
• Barcode (Secondary) 9311554790004
• Barcode (Tertiary) 19311554785861
