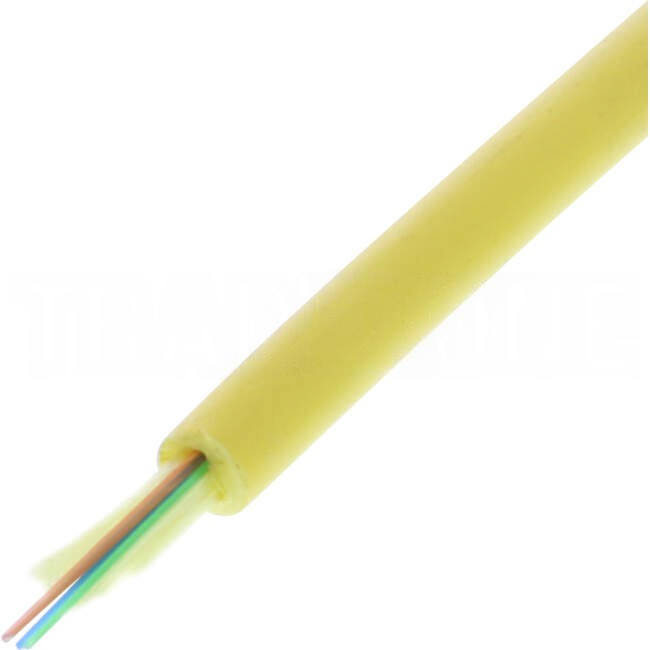

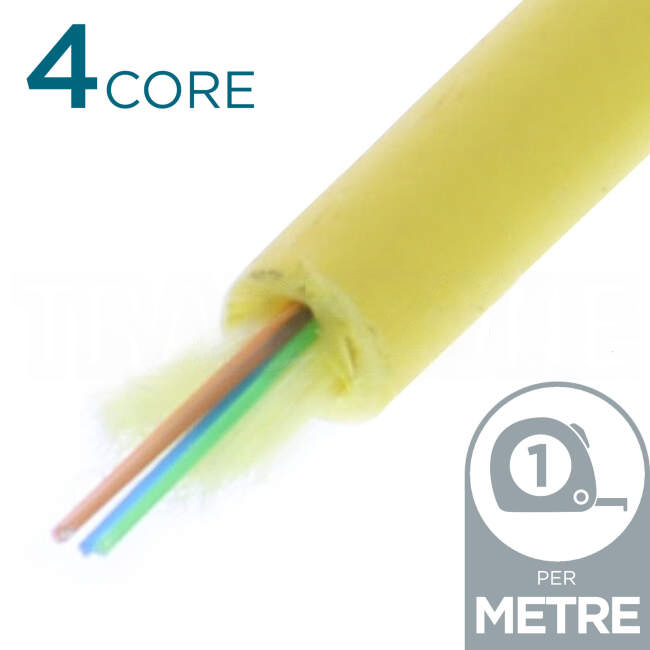

Cleerline SSF OS2 Indoor/Outdoor 4 Core Fiber Micro Distribution Cable Yellow Per Metre

Cleerline SSF OS2 Indoor/Outdoor 4 Core Fiber Micro Distribution Cable Yellow Per Metre

Regular price $2.26 AUD
Regular price Sale price $2.26 AUD
Sale Sold out
Tax included.

Cleerline SSF™ 4 strand fiber Micro Distribution cable is composed of distribution style SSF™ cable with an overall 3.0 mm Plenum rated jacket.

SSF™ Micro Distribution is ideal for inter-building or intra-building data communication backbones.

Cleerline SSF™ Micro Distribution Single Mode is fully compatible with all common connector systems for standard 9/125 Single Mode fiber.

The included SSF™ fiber provides extreme durability and strength. Flex tested to 2000 cycles, impact to 1500 cycles, and crush to 100 kgf/mm.

FEATURES AND BENEFITS

  • High mechanical strength, superior fatigue (nD = 30)
  • Compatible with common connector systems for 9/125 single mode fiber
  • Up to 10,000x the bend longevity of traditional fiber
  • Integral SSF™ coating provides glass protection
  • Increased safety due to incredible bend insensitivity
  • Exclusive 250 µm Soft Peel acrylate

APPLICATIONS

  • Inter-/Intra-building voice or data communication
  • Installation in ducts or underground conduit
  • Fiber-to-the-desk (FTTD) / Fiber-to-the-Home (FTTH)
  • UL listed type OFNP for installation in ducts, plenums and other spaces used as environmental air returns when installed in accordance with NEC article 770-51(a) and 770-53(a)

Warranty Information (From Install)

  • Commercial Use    1 Year
  • Domestic Use    1 Year
  • Warranty Method    Return to All Led Direct
  • Warranty Period    1 Year

Attributes

  • Brand    Cleerline SSF
  • Part Number - 4D9125SMOS2P
  • Also Known As    4 core cleerline fibre
  • Cable Sheath Colour    Yellow
  • Data Cable Type    Plenum - Indoor/Outdoor
  • Number of Cores    4
  • Optical Mode    OS2
  • Cable Sheath Colour    Yellow
  • Data Cable Type    Plenum - Indoor/Outdoor
  • Optical Mode    OS2

Shipping Information

  • Freight Levy    Freight Free on LED Couriers for orders over $500
  • Weight (kg)    0.0226
  • Length (mm)    1000
  • Height (mm)    3
  • Width (mm)    3
  • Length Packaging (mm)    1000
  • Height Packaging (mm)    3
  • Width Packaging (mm)    3
  • Barcode    013964792379
