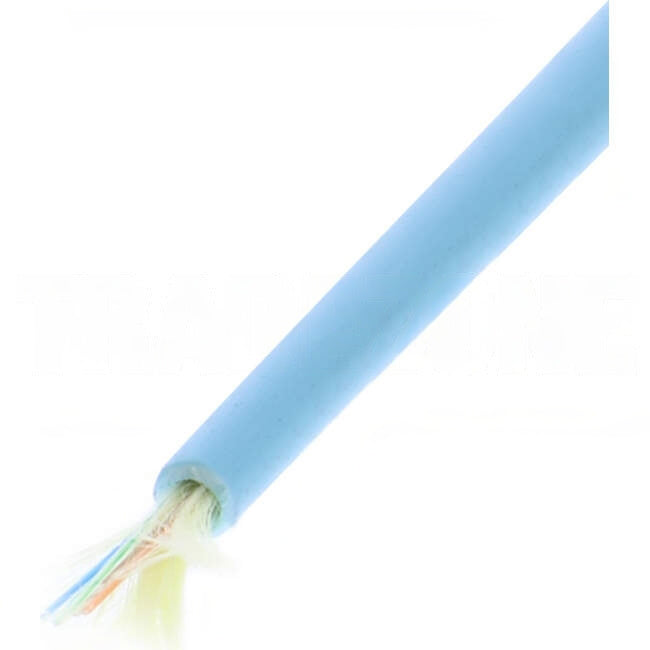

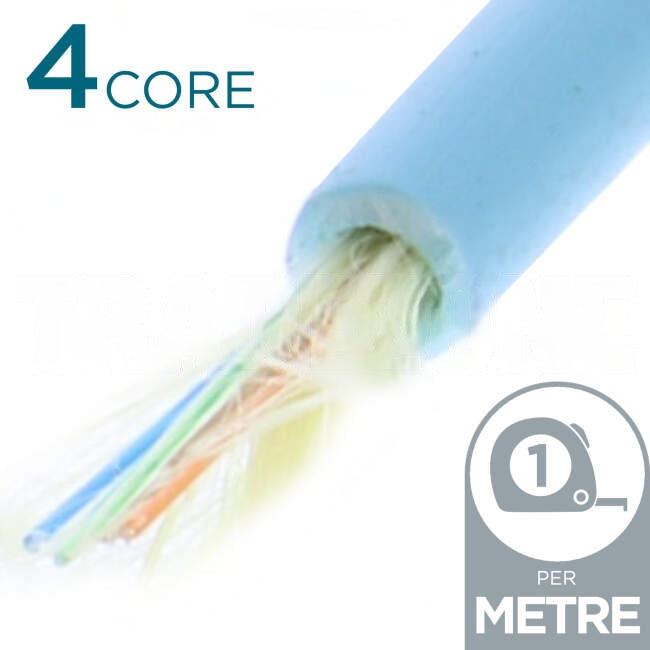

Cleerline SSF OM3 Indoor/Outdoor 4 Strand Fiber Micro Distribution Cable Aqua Per Metre

Cleerline SSF 4 strand fiber Micro Distribution cable is composed of distribution style SSF cable with an overall 3.0 mm Plenum rated jacket.

SSF Micro Distribution is ideal for inter-building or intra-building data communication backbones.

Cleerline SSF Micro Distribution Multimode is fully compatible with all common connector systems for standard 50/125 multimode fiber.

The included SSF fiber provides extreme durability and strength. Flex tested to 2000 cycles, impact to 1500 cycles, and crush to 100 kgf/mm.

FEATURES AND BENEFITS

• High mechanical strength, superior fatigue (nD = 30)
• Compatible with common connector systems for 50/125 multimode fiber
• Up to 10,000x the bend longevity of traditional fiber
• Integral SSF coating provides glass protection
• Increased safety due to incredible bend insensitivity
• Exclusive 250 m Soft Peel acrylate

APPLICATIONS

• Inter-/Intra-building voice or data communication
• Installation in ducts or underground conduit
• Fiber-to-the-desk (FTTD) / Fiber-to-the-Home (FTTH)
• UL listed type OFNP for installation in ducts, plenums and other spaces used as environmental air returns when installed in accordance with NEC article 770-51(a) and 770-53(a)

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Cleerline SSF
• Part Number - 4D50125MOM3P
• Also Known As 4 core OM3 cleerline fibre
• Cable Sheath Colour Aqua
• Data Cable Type Plenum - Indoor/Outdoor
• Number of Cores 4
• Optical Mode OM3
• Cable Sheath Colour Aqua
• Data Cable Type Plenum - Indoor/Outdoor
• Optical Mode OM3

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.0226
• Length (mm) 1000
• Height (mm) 3
• Width (mm) 3
• Length Packaging (mm) 1000
• Height Packaging (mm) 3
• Width Packaging (mm) 3
• Barcode 602573550489
