Cleerline Fiber Test Kit

The Cleerline SSF-TKITE-100 Fiber Test Kit provides the essential tools for optical link testing. The Optical Power Meter, combined with Optical Light Source units, tests both multimode and single mode fibers to measure optical power loss on installed fiber. This kit tests on four wavelengths (850, 1300, 1310, and 1550nm) with a range of 70dB. Adapters to test SC and LC terminated cables are included. The test units, along with reference cables and adapters, are contained in a rugged case that keeps the items within neat, organized, and protected.

The SSF-TKITE-100 Fiber Test Kit allows testing of installed cables, connectors, splices, and links. The Optical Multimode and Single Mode Light Sources and Power Meter (LSPM) measure loss for comparison to estimated loss calculated for the link or loss budget. The SSF LSPM test set allows for measurements with a known good reference cable calibrated to 0 dB. Utilization of this kit provides for verification of cable links to industry standards.

Features

• Tests both multimode and single mode fibers
• Wavelengths of 850, 1300, 1310, and 1550nm
• SC ports and LC type MM and SM adapters
• SC and LC reference cables included
• Auto shut-off function for extended battery life
• Easy reference power setup

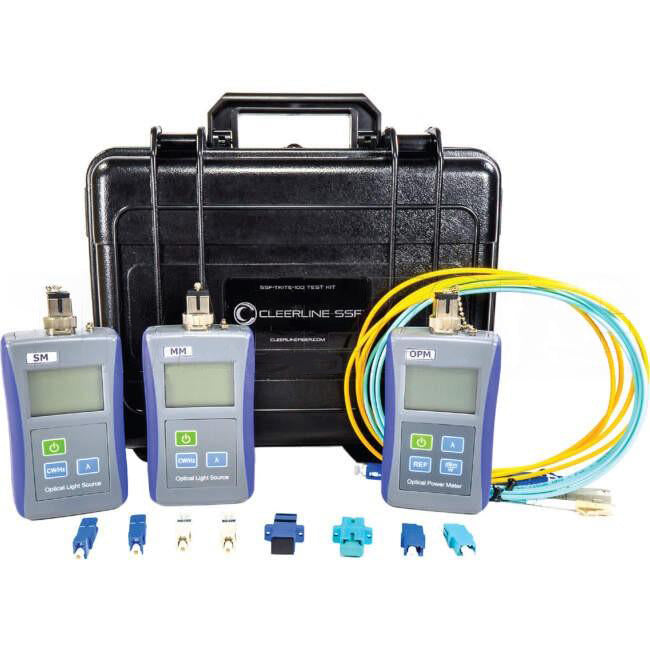

KIT CONTENTS

• 1 ea Power Meter
• 1 ea Light Source (Multimode): 850 nm, 1300 nm
• 1 ea Light Source (Single Mode): 1310 nm, 1510 nm
• 1 ea SC-SC OM3 Reference Patch Cable
• 1 ea LC-LC OM3 Reference Patch Cable
• 1 ea SC-SC OS2 Reference Patch Cable
• 1 ea LC-LC OS2 Reference Patch Cable
• 2 ea SC Male to LC Female Adapter (Single Mode)
• 2 ea SC Male to LC Female Adapter (Multimode)
• 2 ea SC-SC Female Adapter
• 2 ea LC-LC Female Adapter
• 1 ea Carrying Case

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Cleerline SSF
• Part Number - SSF-TKITE-100
• Also Known As Fibre Test Kit

Shipping Information

• Weight (kg) 1.0000
• Length Packaging (mm) 310
• Height Packaging (mm) 112
• Width Packaging (mm) 240
• Barcode 2000100902875
• Barcode (Secondary) 602573129883
