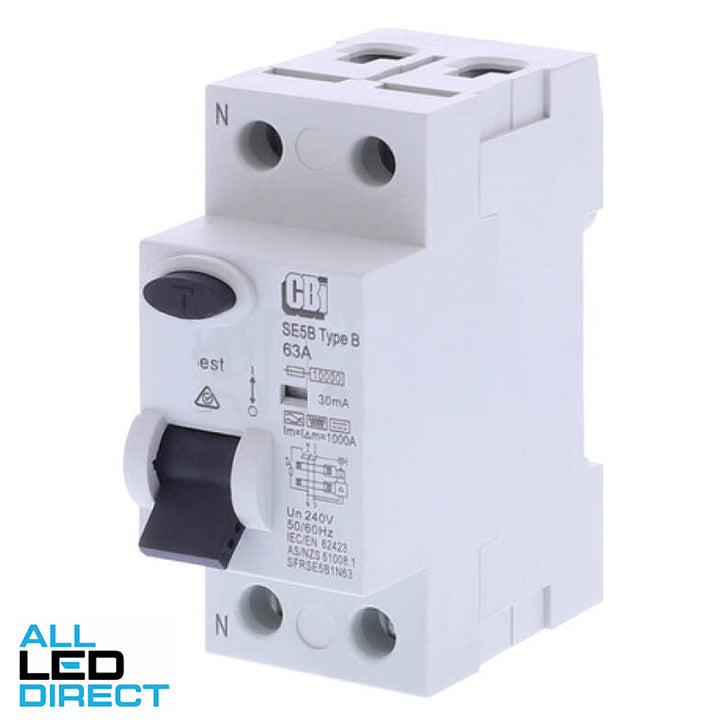

CBI Heinemann 63 Amp Residual Current Circuit Breaker RCD Type B 1 Pole + Neutral 10kA 30mA

CBI Heinemann 63 Amp Residual Current Circuit Breaker RCD Type B 1 Pole + Neutral 10kA 30mA by CBI Heinemann is a Type B RCD available in 1P+N configuration. The CBI Heinemann SFRSE5B1N63 has a current rating of 63A and a sensitivity of 30mA, making it suitable for circuits with VSDs/EV chargers. It is thermally magnetic and certified for use in Australia, complying with IEC/EN 62423 and AS/NZS 61008.1 standards, with approvals from SAA RCM CE.
Key Features
Configuration: 1P+N
RCD Type: Type B
Current Rating: 63A
Sensitivity: 30mA
Suitability: Suitable for circuits with VSDs/EV chargers
Certifications: Compliant with IEC/EN 62423 and AS/NZS 61008.1 standards, with approvals from SAA RCM CE
Main Benefits
Enhanced Safety: Provides circuit protection with a high sensitivity of 30mA
Compliance: Meets Australian standards with certifications from SAA RCM CE
Versatility: Suitable for various applications, including circuits with VSDs/EV chargers

Attributes:

Brand: CBI Heinemann
Part Number: SFRSE5B1N63
Amperage Range: 63 Amps
Poles: 1 Pole + N
Sub Category: Residual Current Devices
Breaking Capacity: 10 kA
Trip Curve: B Curve
Voltage: 240 Volts

Weight (kg): 0.2200
Length (mm): 68
Height (mm): 83
Width (mm): 36
Length Packaging (mm): 95
Height Packaging (mm): 40
Width Packaging (mm): 81
Barcode: 2000100957660
Barcode (Secondary): 2000200957669

Warranty Information:

Warranty Method
Return to ALL LED DIRECT
Commercial Use
1 Year
Domestic Use
1 Year
Warranty Period
1 Year
