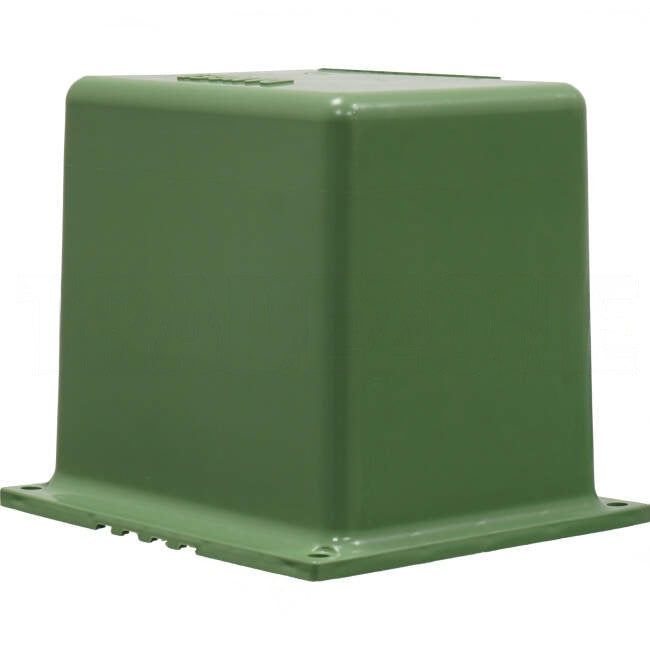

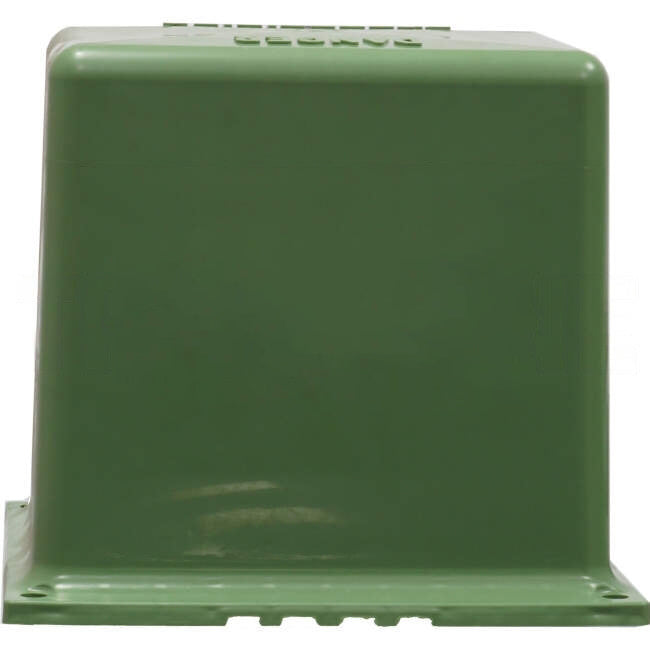

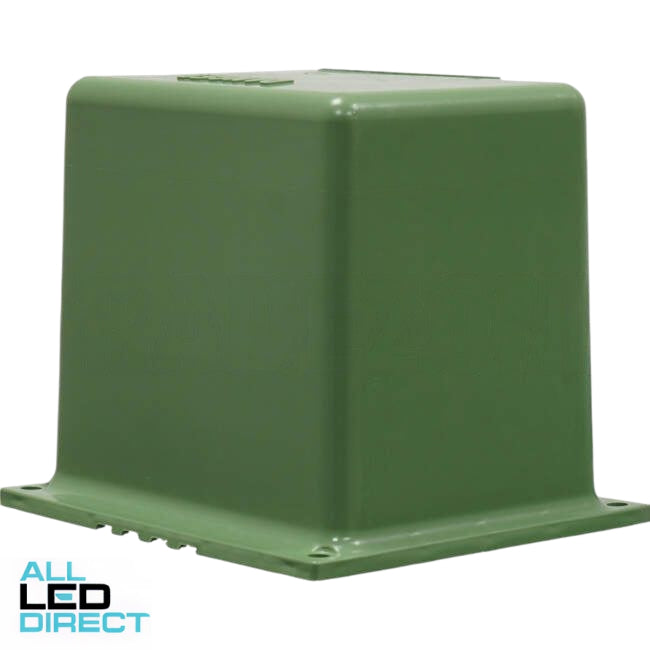

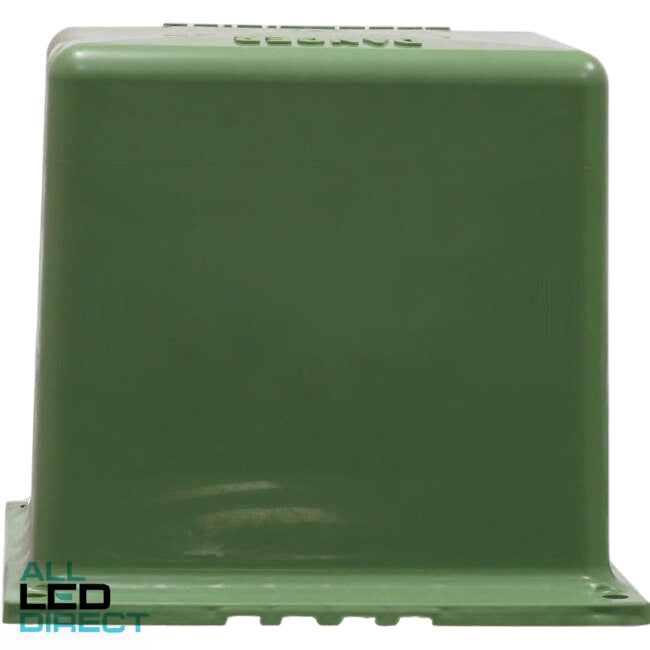

Cabac Short Pillar Lid Non Vented Green DBolt

Pillar Short Non Vented - Green

The CABAC Pillar Box range provides a quality, cost effective distribution cover that accommodates all standard underground cable reticulation requirements. These pillars have been in service for a number of years, installed by power authorities.

Standard Pillar Tops & Kits - Features

Fits existing bases - standard bolt pattern and dimensions
A bottom venting channel allowing the free flow of air while obstructing any water or foreign bodies
Optional top venting for exhausting hot air in order to maintain lower operating temperatures for internal fuses, links, etc.
Design incorporates a baffle system to condense humid air and divert water condensation outside

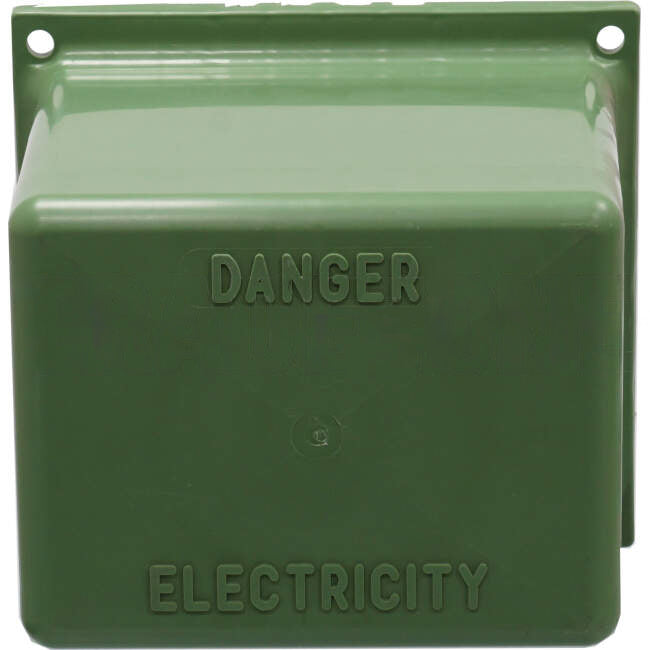

Standard covers are embossed with 'Danger Electricity' on top
Standard colour is nature green. Beige also available and special colours on request
Recyclable material
Pillars can be stacked to reduce storage costs


Standard production material is ultra-violet stabilised to LS3 with proven long life exposure to sunlight. This material offers high absorption to everyday impacts with equally high resistance to contaminants, while presenting a rigid cover free from distortion.

Warranty Information:

Commercial Use
Domestic Use
Warranty Method
Warranty Period

Attributes:

Brand Cabac
Part Number
PBS-G-NV-SD

Also Known As Green Boy Green Boy Pillar
Material PVC

Shipping Information:

Attributes
Brand Cabac
Part Number
PBS-G-NV-SD

Also Known As Green Boy Green Boy Pillar
Material PVC
Shipping Information

Weight (kg) 1.6000
Length (mm) 315
Height (mm) 308
Width (mm) 352
Length Packaging (mm) 315
Height Packaging (mm) 308
Width Packaging (mm) 352
Barcode 9318674879879
