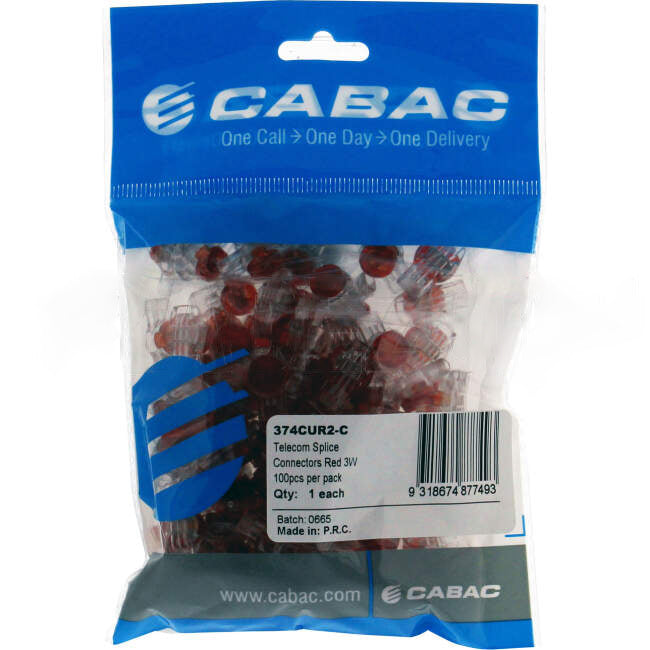

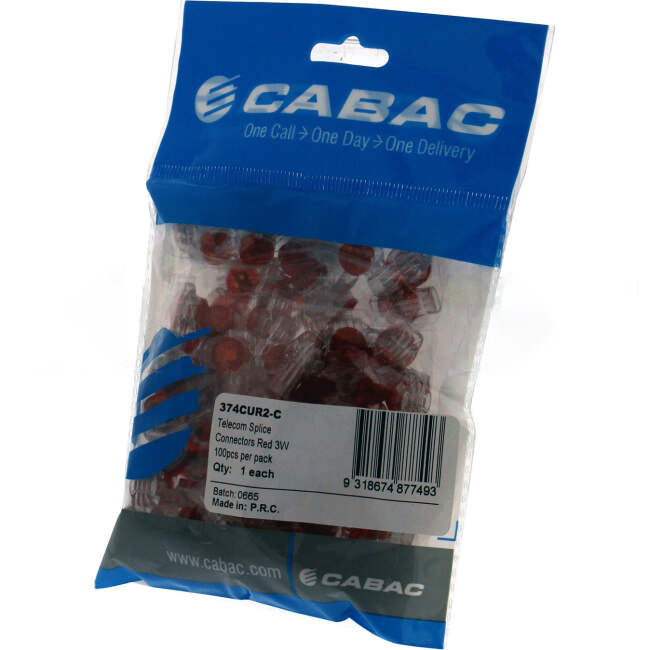

Cabac Scotchlok IDC 3 Hole Butt Connector UR2-D Filled With Sealant Pack of 100

Telecom Splice Connectors are specifically designed to quickly connect two or three telecom conductors. Simply insert the un-stripped wires, and crimp the cap of the connector using the correct crimping tool (Part No. TELSP2), and the wires are connected forever.

Telecom Splice Connector Features

CABAC Telecom Splice connectors are certified to AS S008:2010
CABAC Telecom Splice connectors comply with ACMA requirements for use in telecommunications applications as Supplier E1508
Contact pins are tin plated brass
Connectors are filled with dimethylsilicone fluid insulation
Bodies are made from polycarbonate plastic that resists splitting, rough handling and solvents

The connection method is an IDC (Insulation Displacement Connection), which is proven to be stable in the long term. Two IDC elements are used in each connection for greater
joint integrity.

Note: Ensure any crimp tool used has a parallel action, like the TELSP2 tool. Many low cost tools have a plier action, which is not recommended for crimping these connectors.

FEATURES

Internal contact pins are tin plated brass and bodies are Polycarbonate - supplied in pack of 100
Certified to AS S008:2010
Filled with dimethyl silicone fluid insulation

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Cabac
• Part Number - 374CUR2-C

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.1140
• Length Packaging (mm) 115
• Height Packaging (mm) 115
• Width Packaging (mm) 30
• Barcode 9318674877493
• Barcode (Secondary) 9318674442318
