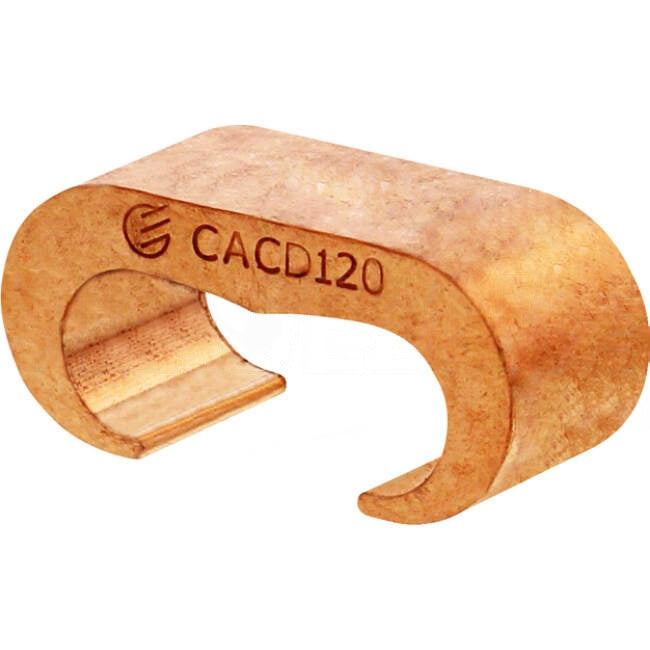

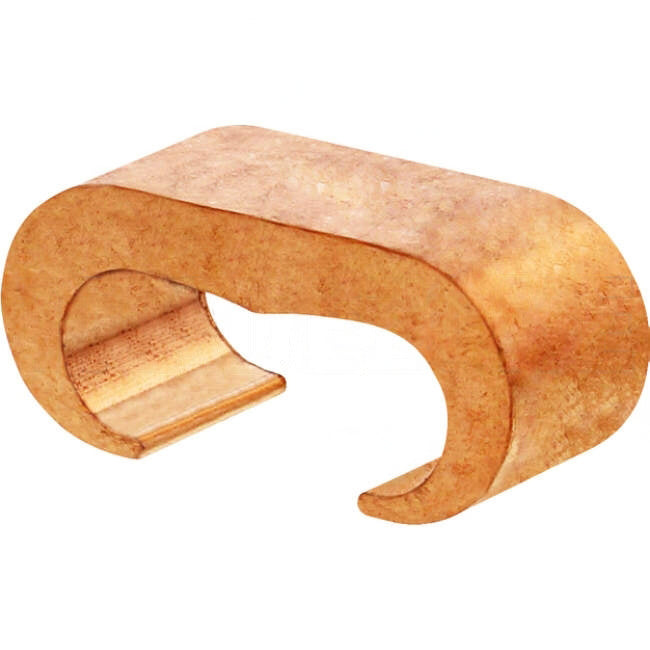

Cabac 95-120mm Wide Jaw C Connector

This range is used for joining and tapping conductors.

The smaller C connectors are used to connect 16, 25 and 35mm conductors, usually in distribution earth situations, and the larger connectors are primarily used to connect earth grids, the resultant joints being corrosion resistant and suitable for direct burial.


Technical data Conductive Material Copper 99.95% pure Tensile Strength 200 MPa Ductile Rating 40%Operating Temperature -55C to 155C

General Electrical Properties Total Conductivity 99.7% IACS Total Resistivity 1.738 micro-ohm cmDimensional Specification Tooling is interchangeable between CABAC and Burndy.

Accepting Authorities Rail Services Australia TelstraConformant Standard International Standard (Heat Cycling Test) ESI 43/92

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Cabac
• Part Number -CACD120

Shipping Information

• Weight (kg) 0.0281
• Length Packaging (mm) 65
• Height Packaging (mm) 10
• Width Packaging (mm) 64
• Barcode 9318674732532
