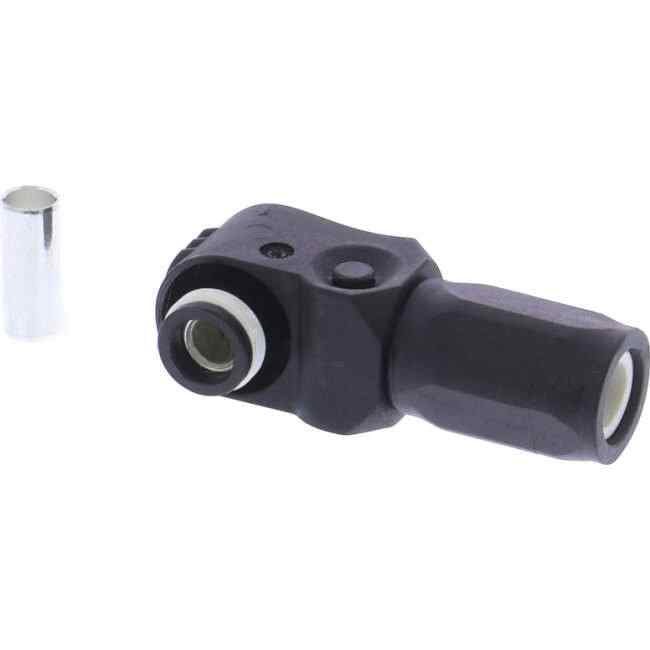

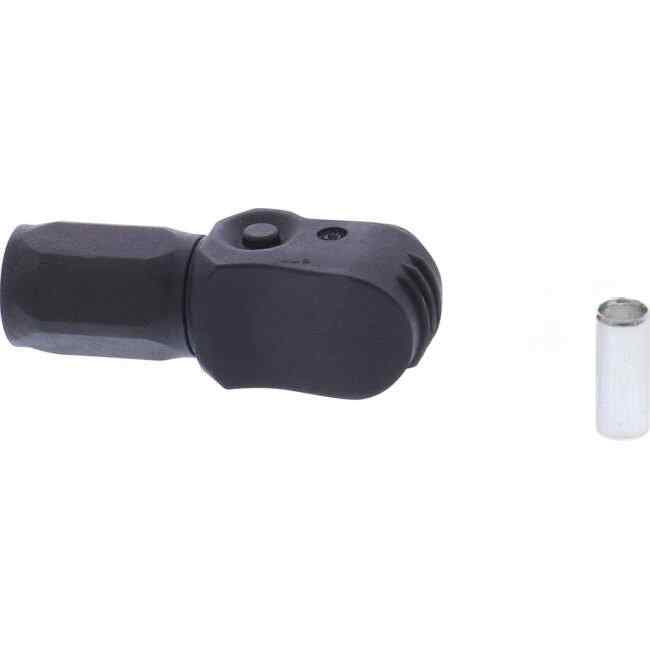

Amphenol Right Angle Plug to Suit 16mm Cable Black

Amphenol Right Angle Plug to Suit 16mm Cable Black

$26.80 AUD
$26.80 AUD $26.80 AUD
Sale Sold out
Tax included.
The SurLok Plus™ compression lug is a field installable, high reliable alternative to common compression lugs. Using industry standard crimp, screw, and busbar termination options, thus eliminating the need to purchase special torque tools.

FEATURES

  • R4 RADSOK®Technology
  • IP67 Rated
  • Touch Proof
  • Quick lock and press-to-release design
  • “Keyway”design to prevent incorrect mating
  • 360° rotating plug
  • Various termination options (Threaded, Crimp, Busbar)
  • Compact robust design

TECHNICAL DATA

  • Contact Size : 5.7mm (120A), 8.0mm (200A), 10.3mm (350A)
  • Current Rating : 100-350A (up to 400A)
  • Operating Voltage : 1000VAC/DC
  • Operating Temperature : -40ºC to 125ºC
  • IP Rating : IP67
  • Protection : Touch Proof
  • Flammability :  UL 94 V-0
  • Locking : Spring Locking

Warranty Information (From Install)

  • Commercial Use 1 Year
  • Domestic Use 1 Year
  • Warranty Method Return to All LED Direct
  • Warranty Period 1 Year

Attributes

  • Brand Amphenol
  • Part Number - SLPPA16BSB

Shipping Information

  • Freight Levy Freight Free on LED Couriers for orders over $500
  • Weight (kg) 0.0265
  • Length Packaging (mm) 55
  • Height Packaging (mm) 20
  • Width Packaging (mm) 28
  • Barcode 2000100878613
